Tractors > CaseIH > 2096

CaseIH 2096 - tests

CaseIH 2096 tractor photo
1985 - 1989
Previous model:J.I. Case 2096
Series back:CaseIH 1896
more CaseIH 2096 specifications...






Nebraska Tractor Test 1549:

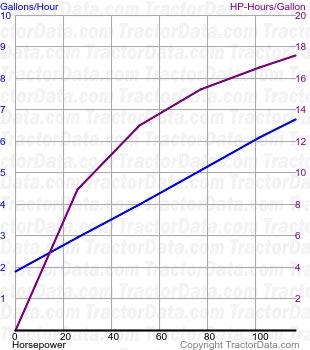

2096 fuel use from test 1549
Test Date:October 24 - November 5, 1984
Type:Diesel 12-speed 2WD
PTO power (rated engine speed):115.67 hp [86.3 kW]
PTO fuel use (engine speed):6.7 gal/hour [25.4 l/hour]
Drawbar power (max):100.56 hp [75.0 kW]
Drawbar fuel use (max):6.6 gal/hour [25.0 l/hour]
Drawbar pull (max):12,915 lbs [5858 kg]
Max pull gear:1-2
Test report:PDF file
