Tractors > CaseIH > 1594

CaseIH 1594 - tests

CaseIH 1594 tractor photo
1985 - 1988
Utility tractor
Previous model:J.I. Case 1594
Series next:CaseIH 1694
more CaseIH 1594 specifications...






Nebraska Tractor Test 1546:

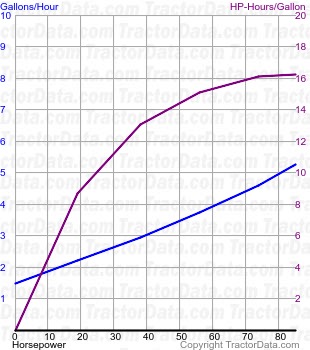

1594 fuel use from test 1546
Test Date:October 24 - November 2, 1984
Type:Diesel synchromesh 2WD
PTO power (rated engine speed):85.90 hp [64.1 kW]
PTO fuel use (engine speed):5.2 gal/hour [19.7 l/hour]
PTO power (rated PTO speed):80.83 hp [60.3 kW]
PTO fuel use (PTO speed):4.7 gal/hour [17.8 l/hour]
Drawbar power (max):72.17 hp [53.8 kW]
Drawbar fuel use (max):5.1 gal/hour [19.3 l/hour]
Drawbar pull (max):8,331 lbs [3778 kg]
Max pull gear:4
Test report:PDF file


Nebraska Tractor Test 1547:

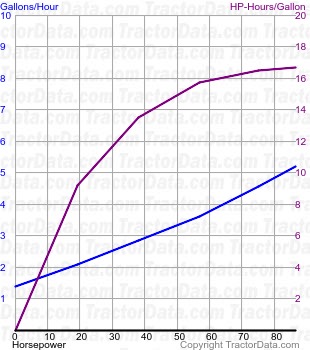

1594 fuel use from test 1547
Test Date:October 23 - 30, 1984
Type:Diesel Hydra-Shift 2WD
PTO power (rated engine speed):85.54 hp [63.8 kW]
PTO fuel use (engine speed):5.2 gal/hour [19.7 l/hour]
PTO power (rated PTO speed):81.94 hp [61.1 kW]
PTO fuel use (PTO speed):4.9 gal/hour [18.5 l/hour]
Drawbar power (max):69.37 hp [51.7 kW]
Drawbar fuel use (max):5.1 gal/hour [19.3 l/hour]
Drawbar pull (max):8,198 lbs [3718 kg]
Max pull gear:4
Test report:PDF file
