Tractors > CaseIH > 495

CaseIH 495 - transmission

CaseIH 495 tractor photo
1991 - 1994   95 Utility Series
Utility tractor
Previous model:CaseIH 485
Next model:CaseIH 3220
Series next:CaseIH 595
Series back:CaseIH 254
more CaseIH 495 specifications...






Transmission:

Type:partially synchronized
Gears:8 forward and 4 reverse
Clutch:dry disc
Oil capacity:36 qts [34.1 L]
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
Speeds:With 13.6x28 rear tires.

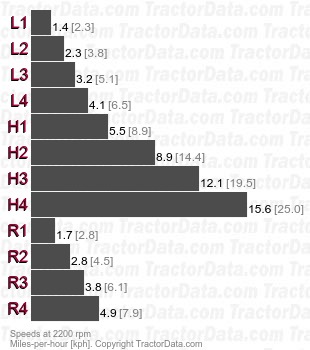

495  partially synchronized speeds


Transmission:

Type:partial power shift
Gears:16 forward and 8 reverse
Oil capacity:36 qts [34.1 L]
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
Speeds:With 13.6x28 rear tires.

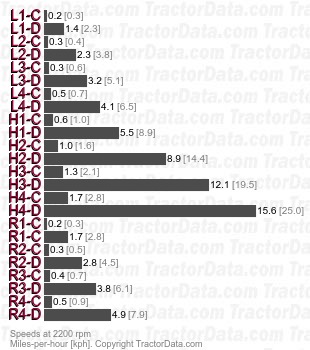

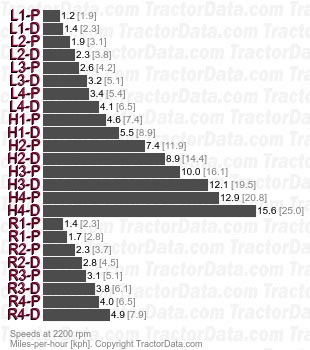

495  partial power shift speeds


Transmission:

Type:synchronized shuttle
Gears:8 forward and reverse
Oil capacity:36 qts [34.1 L]
Four gears each in high and low ranges, both forward and reverse.
Speeds:With 13.6x28 rear tires.

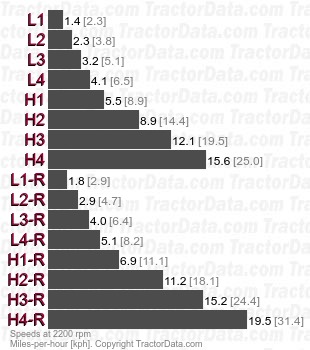

495  synchronized shuttle speeds


Transmission:

Type:creeper
Gears:16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
Speeds:With 13.6x28 rear tires.
495  creeper speeds
