Tractors > CaseIH > MX100C

CaseIH MX100C - transmission

CaseIH MX100C tractor photo
1998 - 2002
Utility tractor
Series back:CaseIH MX90C
more CaseIH MX100C specifications...






Transmission:

Type:partial power shift
Gears:16 forward and 12 reverse
Clutch:hydraulic wet discs
Four power shift speeds (1-4) in four synchronized ranges (I-IV) with power shuttle. Three ranges in reverse.
Speeds:

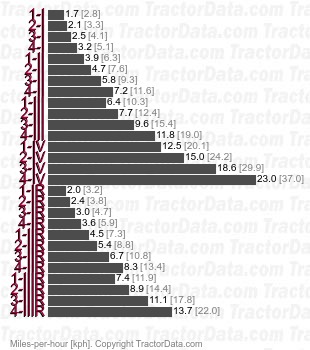

MX100C  partial power shift speeds


Transmission:

Type:creeper
Gears:32 forward and 24 reverse
