Tractors > CaseIH > MX100C

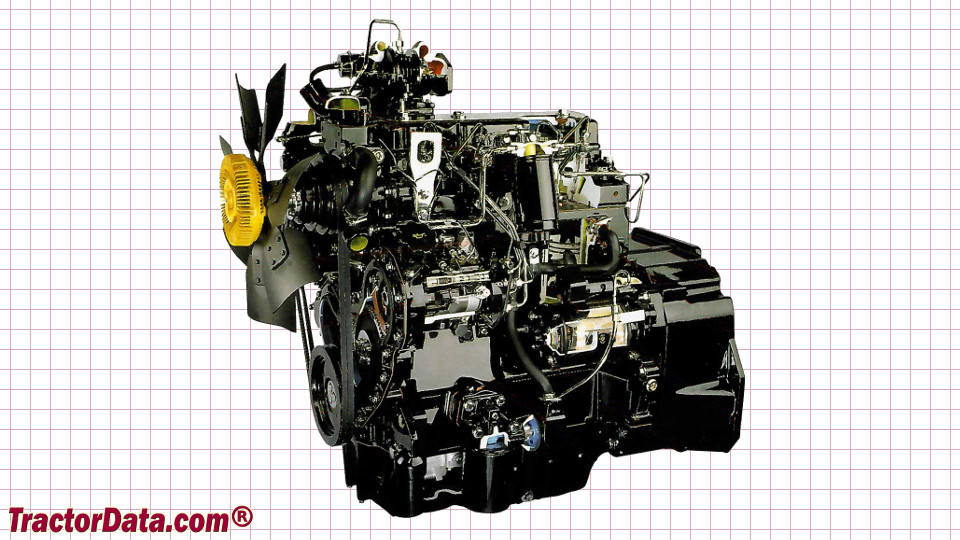

CaseIH MX100C - engine

CaseIH MX100C tractor photo
1998 - 2002
Utility tractor
Series back:CaseIH MX90C
more CaseIH MX100C specifications...






Engine Detail:

 Perkins
 turbocharged diesel
 4-cylinder
 liquid-cooled
 243.5 ci [4.0 L]
Bore/Stroke:3.937x5.00 inches [100 x 127 mm]
Power:100 hp [74.6 kW]
Fuel system:direct-injection with mechanical governor, rotary injection pump with 5-hole nozzles
Air cleaner:dual paper elements
Compression:17.25:1
Rated RPM:2200
Starter volts:12
Oil capacity:9.3 qts [8.8 L]
Coolant capacity:16.6 qts [15.7 L]
