Tractors > CaseIH > MX100 Maxxum

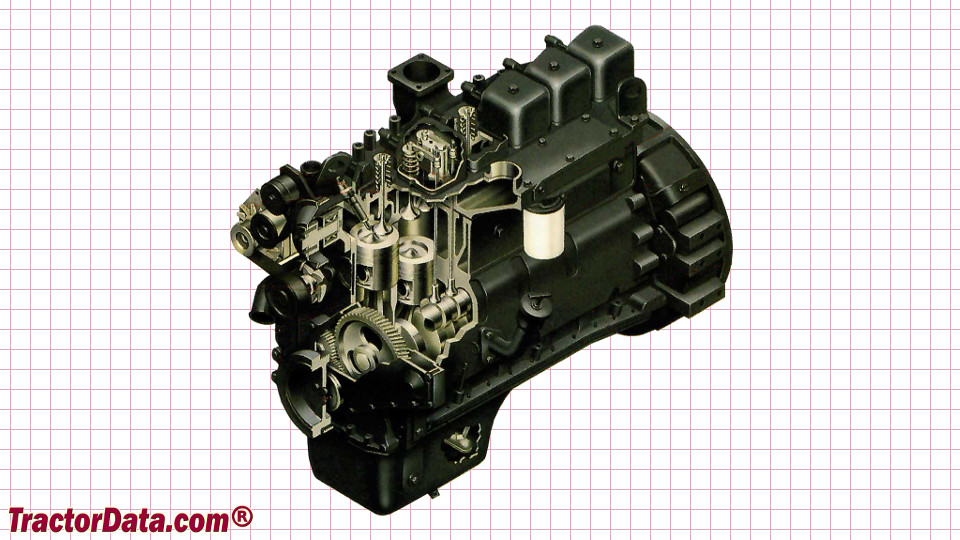

CaseIH MX100 Maxxum - engine

CaseIH MX100 Maxxum tractor photo
1997 - 1999   Maxxum Series
Previous model:CaseIH 5220
Series next:CaseIH MX110
more CaseIH MX100 Maxxum specifications...






Engine Detail:

 Cummins/CDC
 turbocharged diesel
 6-cylinder
 liquid-cooled inline
 359 ci [5.9 L]
Bore/Stroke:4.016x4.724 inches [102 x 120 mm]
Power:100 hp [74.6 kW]
Fuel system:direct injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors
Air cleaner:dual-element dry
Compression:17.5:1
Rated RPM:2200
Starter volts:12
Oil capacity:15.8 qts [15.0 L]
Coolant capacity:19.5 qts [18.5 L] (ROPS)
 21 qts [19.9 L] (cab)
