Tractors > CaseIH > CX100

CaseIH CX100 - tests

CaseIH CX100 tractor photo
1998 - 2002   CX Utility Series
Utility tractor
Previous model:CaseIH 4240
Series back:CaseIH CX90
more CaseIH CX100 specifications...






OCED Tractor Test 1899:

Nebraska summary:329

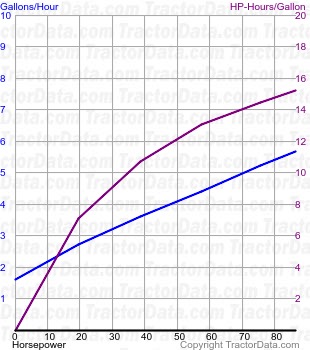

CX100 fuel use from test 329
Test Date:August 1998 - September 1998,
Type:Diesel 16-speed 4WD
PTO power (rated engine speed):86.2 hp [64.3 kW]
PTO fuel use (engine speed):5.7 gal/hour [21.6 l/hour]
PTO power (rated PTO speed):87.2 hp [65.0 kW]
PTO fuel use (PTO speed):5.4 gal/hour [20.4 l/hour]
Drawbar power (max):74.0 hp [55.2 kW]
Drawbar fuel use (max):5.6 gal/hour [21.2 l/hour]
Drawbar pull (max):9,160 lbs [4154 kg]
Max pull gear:2-Low-Direct
Test report:PDF file
