Tractors > CaseIH > CX90

CaseIH CX90 - tests

CaseIH CX90 tractor photo
1998 - 2002   CX Utility Series
Utility tractor
Previous model:CaseIH 4230
Series next:CaseIH CX100
Series back:CaseIH CX80
more CaseIH CX90 specifications...


OCED Tractor Test 1898:

Nebraska summary:328

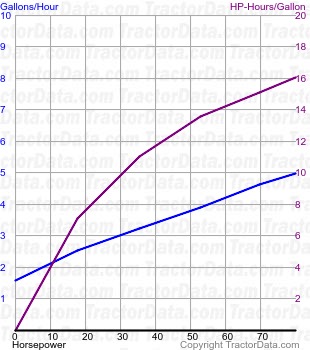

CX90 fuel use from test 328
Test Date:October 1998 - November 1998,
Type:Diesel 16-speed 4WD
PTO power (rated engine speed):79.7 hp [59.4 kW]
PTO fuel use (engine speed):5.0 gal/hour [18.9 l/hour]
PTO power (rated PTO speed):81.1 hp [60.5 kW]
PTO fuel use (PTO speed):4.8 gal/hour [18.2 l/hour]
Drawbar power (max):69.2 hp [51.6 kW]
Drawbar fuel use (max):5.0 gal/hour [18.9 l/hour]
Drawbar pull (max):9,220 lbs [4182 kg]
Max pull gear:2-Low-TA
Test report:PDF file
