CaseIH MX80C Engine


CaseIH MX80C tractor photo
1998 - 2002
Utility tractor
Series:MX80C5220

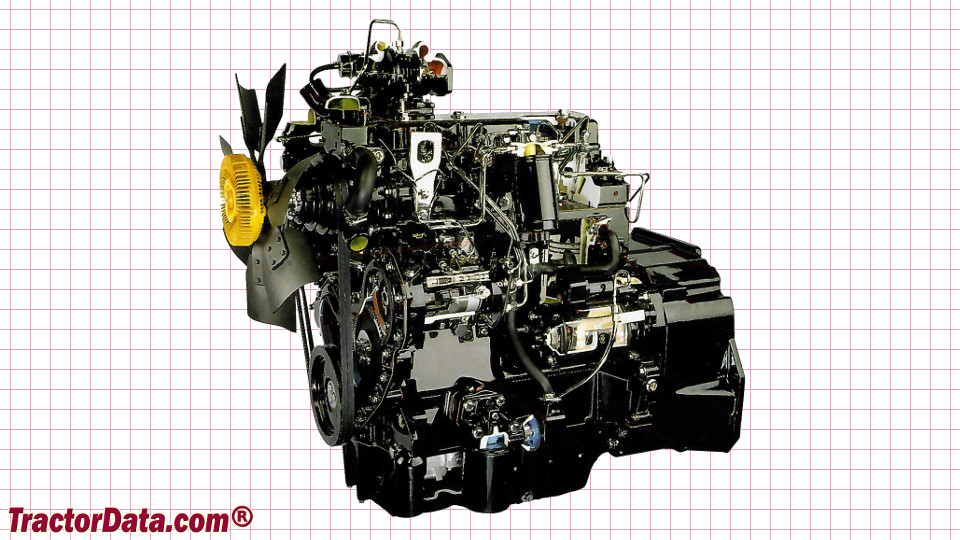

Engine Detail
Perkins
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:243.5 ci
4.0 L
Bore/Stroke:3.937x5.00 inches
100 x 127 mm
Power:84 hp
62.6 kW
Fuel system:direct-injection with mechanical governor, rotary injection pump with 5-hole nozzles
Air cleaner:dual paper elements
Compression:17.25:1
Rated RPM:2200
Starter volts:12
Oil capacity:9.3 qts
8.8 L
Coolant capacity:16.6 qts
15.7 L
