| | 1969 - 1971 |
| Row-Crop tractor |
|
Series map:
G950
G1050
G1350
107.8hp*
122.2hp*
156.7hp*
*Estimated engine power for comparison only.
| Transmission options |
| 10-speed two-speed power shift |
| 15-speed three-speed power shift |
| Transmission |
| Transmission | Minneapolis-Moline Ampli-Torc
|
| Type | two-speed power shift
|
| Gears | 10 forward and 2 reverse
|
| Clutch | 355.6mm dry disc
|
| Oil capacity | 88 qts
83.3 L
|

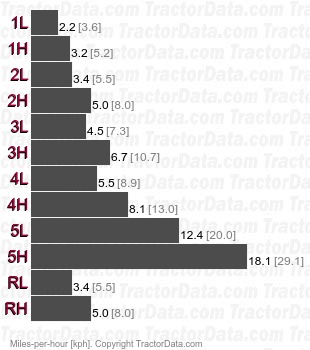

| Speeds |
| With 18.4-34 rear tires. |
|
| Transmission |
| Transmission | Ampli-Torc
|
| Type | three-speed power shift
|
| Gears | 15 forward and 3 reverse
|
| Clutch | 355.6mm dry disc
|
| Oil capacity | 88 qts
83.3 L
|
| Five-speed transmission with three-speed power shift. |

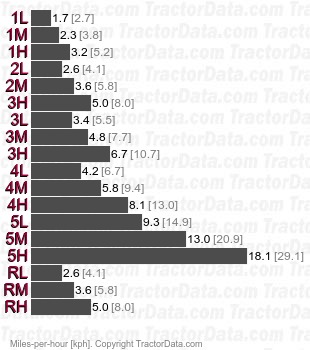

| Speeds |
| With 18.4-34 rear tires. |
|
