Tractors > Minneapolis-Moline > M-5

Minneapolis-Moline M-5 Tests



Minneapolis-Moline M-5 tractor photo
1960 - 1963
Series map:
M-5
69.0hp
Tractor Tests
NTTL 756: gasoline 10-speed 2WD
NTTL 757: LP gas 10-speed 2WD
NTTL 758: diesel 10-speed 2WD
Nebraska Tractor Test 756

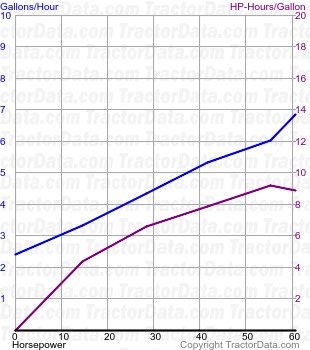

M-5 fuel use from test 756
Nebraska Tractor Test 756
Gasoline 10-speed 2WD
August 31 - September 10, 1960
Link: Nebraska Tractor Test 756 file
PTO performance
Power at rated engine speed61.01 hp
45.5 kW
Fuel use5.3 gal/hour
20.1 l/hour
Power at rated PTO speed57.45 hp
42.8 kW
Fuel use4.9 gal/hour
18.5 l/hour
Drawbar performance
Max power52.51 hp
39.2 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 2-High used for power test.
Max pull6,693 lbs
3035 kg
Gear 2-Low used for pull test.
Nebraska Tractor Test 757

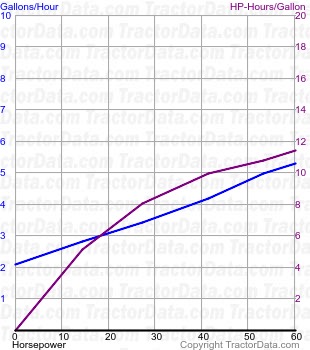

M-5 fuel use from test 757
Nebraska Tractor Test 757
LP gas 10-speed 2WD
August 31 - September 10, 1960
Link: Nebraska Tractor Test 757 file
PTO performance
Power at rated engine speed61.26 hp
45.7 kW
Fuel use6.8 gal/hour
25.7 l/hour
Power at rated PTO speed57.34 hp
42.8 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power54.47 hp
40.6 kW
Fuel use6.8 gal/hour
25.7 l/hour
Gear 2-High used for power test.
Max pull6,802 lbs
3085 kg
Gear 1-High used for pull test.
Nebraska Tractor Test 758

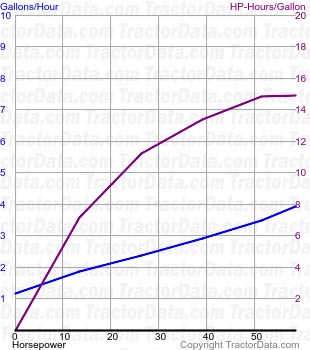

M-5 fuel use from test 758
Nebraska Tractor Test 758
Diesel 10-speed 2WD
August 6 - September 10, 1960
Link: Nebraska Tractor Test 758 file
PTO performance
Power at rated engine speed58.15 hp
43.4 kW
Fuel use3.8 gal/hour
14.4 l/hour
Power at rated PTO speed53.82 hp
40.1 kW
Fuel use3.5 gal/hour
13.2 l/hour
Drawbar performance
Max power51.37 hp
38.3 kW
Fuel use3.9 gal/hour
14.8 l/hour
Gear 2-High used for power test.
Max pull6,751 lbs
3062 kg
Gear 2-Low used for pull test.
