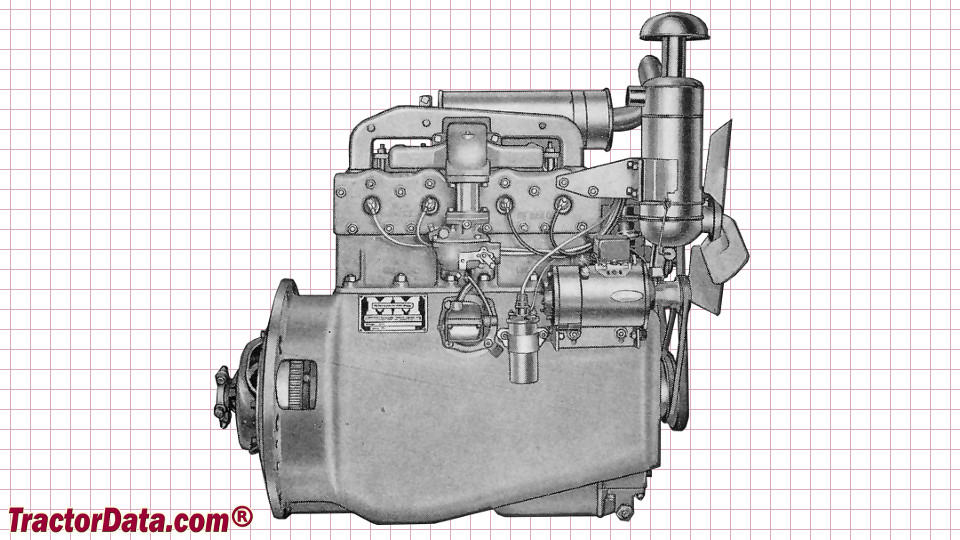

Minneapolis-Moline RTS Engine
|
|
| Engine Detail | |
| Minneapolis-Moline | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 165 ci 2.7 L |
| Bore/Stroke: | 3.625x4.00 inches 92 x 102 mm |
| Rated RPM: | 1500 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 6 |
| Oil capacity: | 7 qts 6.6 L |
| Coolant capacity: | 13.5 qts 12.8 L |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Point gap: | 0.020 inches 0.508 mm |
| Intake valve clearance: | 0.025 inches 0.635 mm hot |
| Exhaust valve clearance: | 0.014 inches 0.356 mm hot |
