Tractors > Challenger > 85C

Challenger 85C Engine



Challenger 85C tractor photo
1994 - 1996
Agricultural Crawler tractor
Series map:
75C
85C
325.0hp
355.0hp
Engine Detail
Caterpillar 3176 ATAAC
turbocharged intercooled diesel
6-cylinder
liquid-cooled inline
Displacement629 ci
10.3 L
Bore/Stroke4.92x5.51 inches
125 x 140 mm
Power355 hp
264.7 kW
Air cleanerdual dry elements
Pre-heatingether injection
 block heater
Compression16:1
Rated RPM2100
Starterelectric
Starter volts12
Oil capacity31.7 qts
30.0 L
Coolant capacity80 qts
75.7 L
Challenger 85C Engine

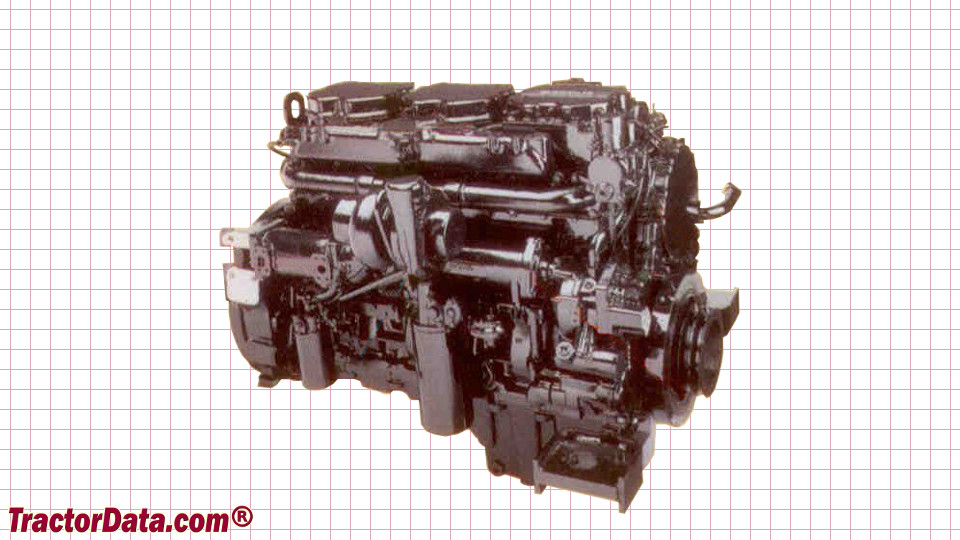

Challenger 85C engine image
