Challenger 75E Engine


Challenger 75E tractor photo
1998 - 2001
Agricultural Crawler tractor
Series map:
65E
75E
85E
310.0hp
340.0hp
375.0hp

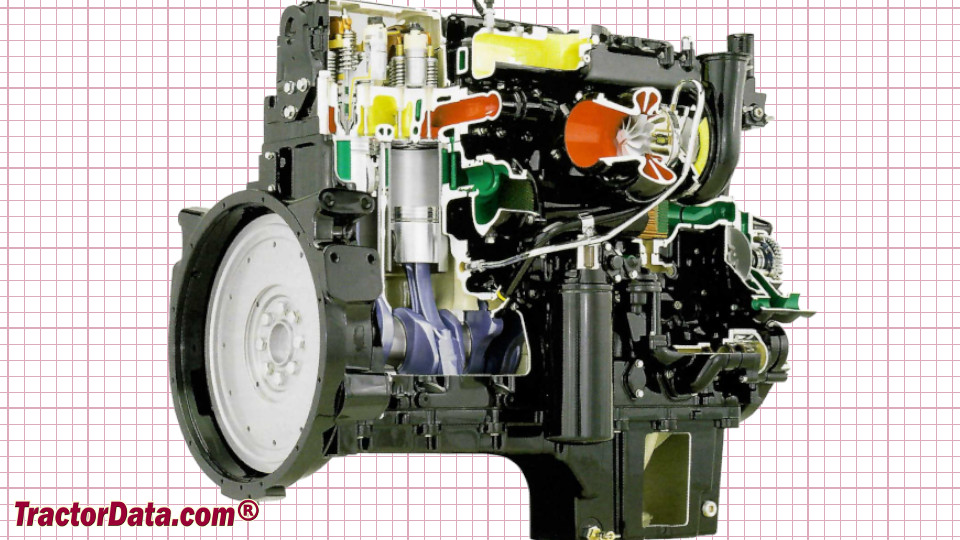

Engine Detail
Caterpillar
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement629 ci
10.3 L
Bore/Stroke4.92x5.51 inches
125 x 140 mm
Power340 hp
253.5 kW
Air cleanerdual paper elements
Compression16:1
Rated RPM2100
Starter volts12
Coolant capacity60 qts
56.8 L
