Tractors > Challenger > 75C

Challenger 75C - engine

Challenger 75C tractor photo
1993 - 1995
Agricultural Crawler tractor
Previous model:Challenger 75
Next model:Challenger 75D
Series next:Challenger 85C
Series back:Challenger 70C
more Challenger 75C specifications...






Engine Detail:

 Caterpillar 3176 ATAAC
 turbocharged diesel
 6-cylinder
 liquid-cooled inline
 629 ci [10.3 L]
Bore/Stroke:4.92x5.5 inches [125 x 140 mm]
Power (gross):325 hp [242.4 kW]
Air cleaner:dual dry elements
Pre-heating:ether injection
 block heater
Compression:16:1
Rated RPM:2100
Starter:electric
Starter volts:12
Oil capacity:31.7 qts [30.0 L]
Coolant capacity:60 qts [56.8 L]

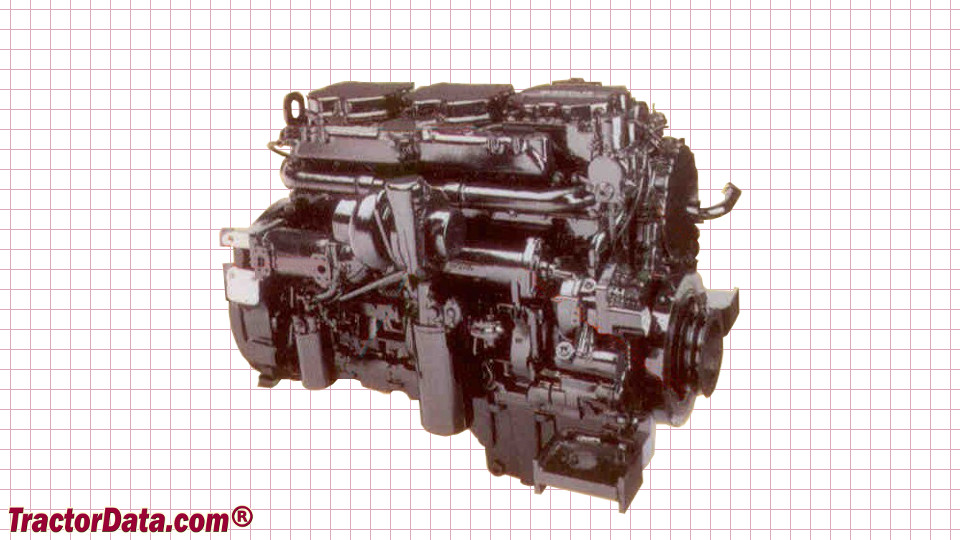

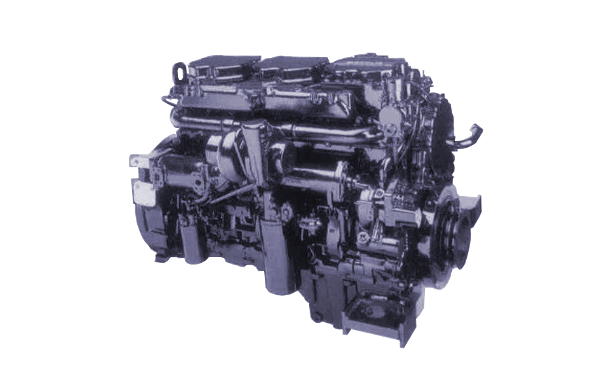

Challenger 75C  engine photo
