Tractors > Challenger > 70C

Challenger 70C - engine

Challenger 70C tractor photo
1995 - 1995
Agricultural Crawler tractor
Series next:Challenger 75C
Series back:Challenger 65C
more Challenger 70C specifications...






Engine Detail:

 Caterpillar 3306 DITA
 turbocharged intercooled diesel
 6-cylinder
 liquid-cooled inline
 638 ci [10.5 L]
Bore/Stroke:4.75x6.00 inches [121 x 152 mm]
Power:285 hp [212.5 kW]
Fuel system:direct injection
Air cleaner:dual dry elements
Pre-heating:ether injection
 block heater
Rated RPM:2100
Starter:electric
Starter volts:12
Oil capacity:27.5 qts [26.0 L]
Coolant capacity:60 qts [56.8 L]

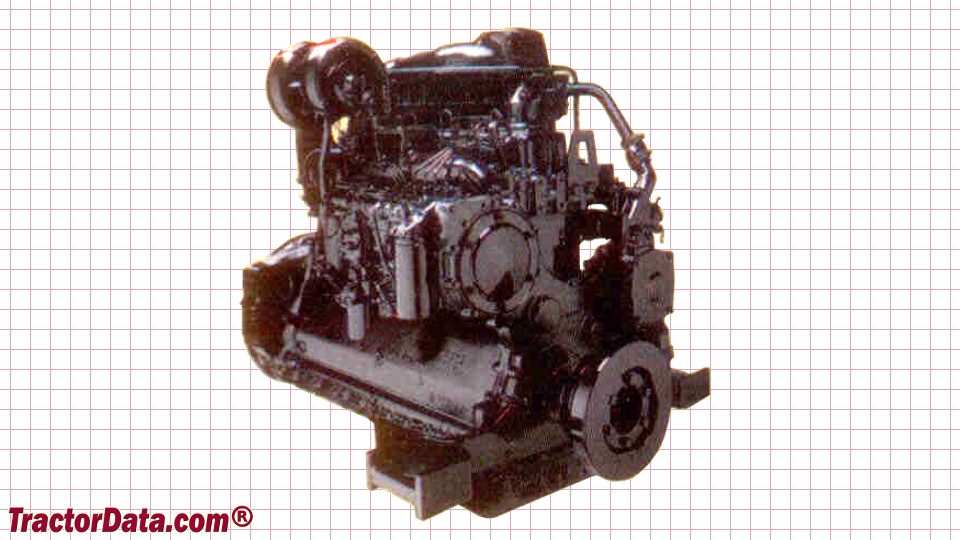

Challenger 70C  engine photo
