Massey Ferguson 4225 Transmission


Massey Ferguson 4225 tractor photo
1997 - 2001
4200 Series
Utility tractor
Series map:
4225
4233
65.0hp
75.0hp
Transmission options
8-speed nonsynchronized gear
12-speed partially synchronized
12-speed synchronized shuttle
12-speed power shuttle
Transmission
Typenonsynchronized gear
Gears8 forward and 2 reverse
Standard transmission on the ROPS-equipped 4225.
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse
Three gears (1-3) plus reverse in two ranges (low/high) two a two-speed synchronized hi-lo shift for each gear. Standard transmission on the cab-equipped 4225.
Transmission
Typesynchronized shuttle
Gears12 forward and reverse
The synchronized shuttle was available in 8-speed (ROPS) or 12-speed (Cab) versions.
Transmission
Typepower shuttle
Gears12 forward and reverse
Optional 12-speed transmission with left-hand power shuttle lever.

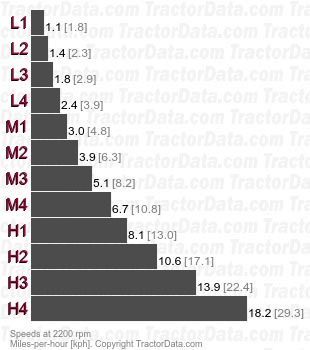

Speeds

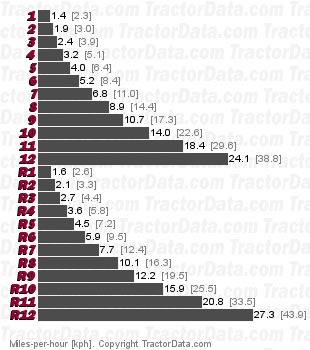

4225  power shuttle speeds
