Massey Ferguson 1210 Transmission


Massey Ferguson 1210 tractor photo
1993 - 1995
1200 Compact Series
Compact Utility tractor
Iseki built
Series map:
1205
1210
1215
15.7hp
16.7hp*
18.0hp
Transmission options
6-speed gear
hydrostatic
9-speed creeper
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch184mm dry disc
Oil capacity10.6 qts
10.0 L
Three gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, to shift gear or range.
Speeds
With 8-16 R1 rear tires.

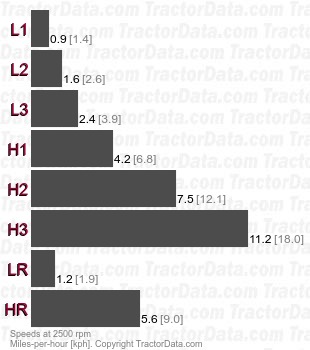

1210  gear speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Speeds
With 8-16 R1 rear tires.

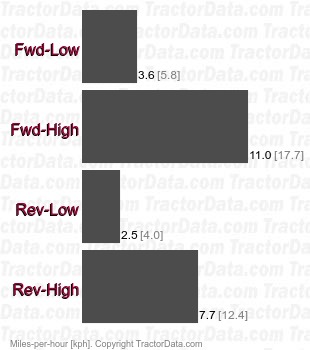

1210  hydrostatic speeds
Transmission
Typecreeper
Gears9 forward and 3 reverse
Optional additional creeper range for the standard transmission.
Speeds
With 8-16 R1 rear tires.

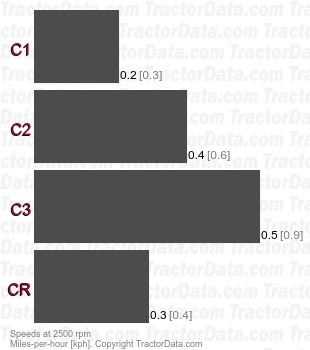

1210  creeper speeds
