John Deere 5090M Tests


John Deere 5090M tractor photo
2018 - 2022
5M Series
Utility tractor
Series map:
5085M
5090M
5100M
85.0hp
89.2hp
100.0hp
Nebraska Tractor Test 2204

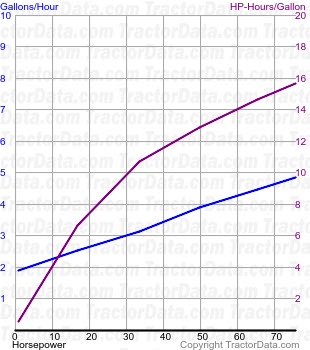

5090M fuel use from test 2204
Nebraska Tractor Test 2204
Diesel 16-speed 4WD
September 25 - 27, 2018
Link: Nebraska Tractor Test 2204 file
PTO performance
Max power83.74 hp
62.4 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated engine speed75.61 hp
56.4 kW
Fuel use4.8 gal/hour
18.2 l/hour
Power at rated PTO speed77.84 hp
58.0 kW
Fuel use4.8 gal/hour
18.2 l/hour
