Massey Ferguson 220 Tests


Massey Ferguson 220 tractor photo
1978 - 1984
Compact Utility tractor
Toyosha built
Series map:
210
220
25.0hp
31.0hp
Tractor Tests
NTTL 1367: diesel 12-speed 2WD
NTTL 1368: diesel 12-speed 4WD
Nebraska Tractor Test 1367

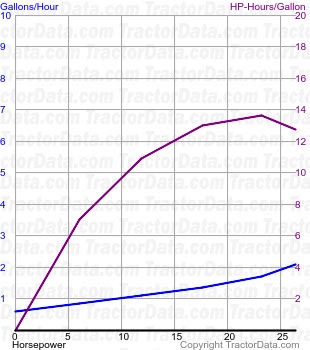

220 fuel use from test 1367
Nebraska Tractor Test 1367
Diesel 12-speed 2WD
September 15 - 26, 1980
Link: Nebraska Tractor Test 1367 file
PTO performance
Power at rated engine speed26.37 hp
19.7 kW
Fuel use2.1 gal/hour
7.9 l/hour
Power at rated PTO speed25.52 hp
19.0 kW
Fuel use1.9 gal/hour
7.2 l/hour
Drawbar performance
Max power22.73 hp
16.9 kW
Fuel use2.0 gal/hour
7.6 l/hour
Gear 9 used for power test.
Max pull3,287 lbs
1490 kg
Nebraska Tractor Test 1368

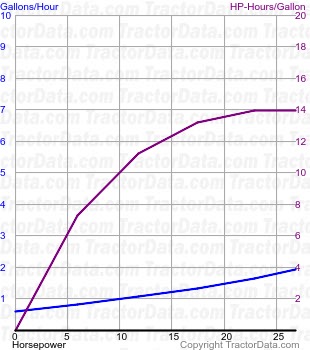

220 fuel use from test 1368
Nebraska Tractor Test 1368
Diesel 12-speed 4WD
September 18 - October 7, 1980
Link: Nebraska Tractor Test 1368 file
PTO performance
Power at rated engine speed26.48 hp
19.7 kW
Fuel use1.9 gal/hour
7.2 l/hour
Power at rated PTO speed26.06 hp
19.4 kW
Fuel use1.8 gal/hour
6.8 l/hour
Drawbar performance
Max power21.45 hp
16.0 kW
Fuel use1.9 gal/hour
7.2 l/hour
Gear 9 used for power test.
Max pull3,496 lbs
1585 kg
