Massey Ferguson 175 Tests


Massey Ferguson 175 tractor photo
1964 - 1975
165
Series:175180
275
Nebraska Tractor Test 897

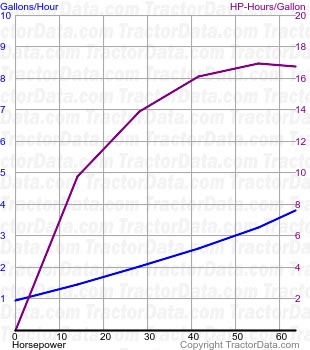

175 fuel use from test 897
Nebraska Tractor Test 897
Diesel 12-speed 2WD
May 17 - 29, 1965
Link: Nebraska Tractor Test 897 file
PTO performance
Power at rated engine speed:63.34 hp
47.2 kW
Fuel use:3.8 gal/hour
14.4 l/hour
Power at rated PTO speed:55.46 hp
41.4 kW
Fuel use:3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power:53.51 hp
39.9 kW
Fuel use:3.7 gal/hour
14.0 l/hour
Gear 1H Low used for power test.
Max pull:7,109 lbs
3224 kg
Gear 2L Hi used for pull test.
Nebraska Tractor Test 1020

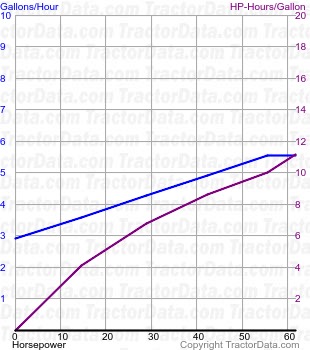

175 fuel use from test 1020
Nebraska Tractor Test 1020
Perkins gasoline 12-speed 2WD
September 11 - 25, 1969
Link: Nebraska Tractor Test 1020 file
PTO performance
Power at rated engine speed:61.89 hp
46.2 kW
Fuel use:5.6 gal/hour
21.2 l/hour
Power at rated PTO speed:58.06 hp
43.3 kW
Fuel use:5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power:48.3 hp
36.0 kW
Fuel use:4.9 gal/hour
18.5 l/hour
Gear 1H Low used for power test.
Max pull:6,848 lbs
3106 kg
Gear 2L Hi used for pull test.
