Fordson Super Dexta Engine


Fordson Super Dexta tractor photo
1962 - 1964
Utility tractor
Engines overview
Ford-Perkins 2.5L 3-cyl diesel
Ford 2.5L 3-cyl diesel
Engine Detail
Ford-Perkins F3.152
diesel
3-cylinder
liquid-cooled
The original engine, used on the Super Dexta through mid-1963.
Displacement152.7 ci
2.5 L
Bore/Stroke3.60x5.00 inches
91 x 127 mm
Power39 hp
29.1 kW
Compression17.4:1
Rated RPM2200
Firing order1-2-3
Starterelectric
Starter volts12
Oil capacity7.66 qts
7.2 L
Coolant capacity9 qts
8.5 L

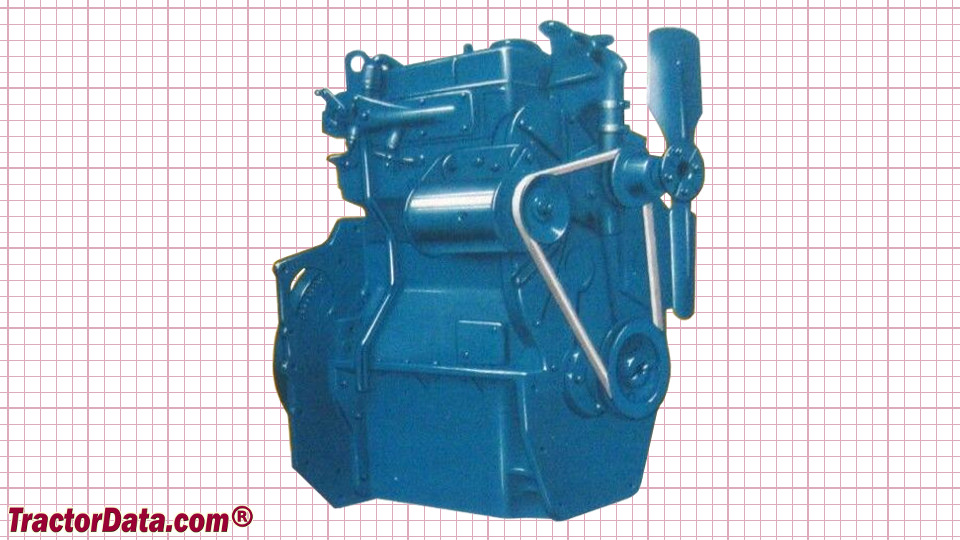

Fordson Super Dexta Engine
Fordson Super Dexta engine image
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
The upgraded engine was used on the New Super Dexta, available in June 1963. Starting with tractor serial number 09C-916556.
Displacement152.7 ci
2.5 L
Bore/Stroke3.60x5.00 inches
91 x 127 mm
Power45 hp
33.6 kW
Compression17.4:1
Rated RPM2250
Firing order1-2-3
Starterelectric
Starter volts12
Oil capacity7.66 qts
7.2 L
