| | 1969 - 1975 |
| Row-Crop tractor |
|
| Transmissions overview |
| 12-speed partial power shift |
| 6-speed unsynchronized gear |
| Transmission |
| Transmission: | Hydra-Power
|
| Type: | partial power shift
|
| Gears: | 12 forward and 4 reverse
|
| Clutch: | 279.4mm dry disc
|
| The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range. |

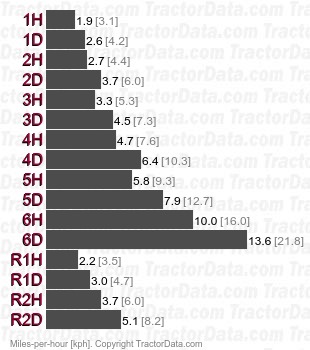

| Speeds |
|
| Transmission |
| Type: | unsynchronized gear
|
| Gears: | 6 forward and 2 reverse
|
| Clutch: | 279.4mm dry disc
|
| Oil capacity: | 40 qts
37.9 L
|
