| | 1969 - 1971 |
| 55 Series | | Utility tractor | | Fiat built |
|
Series map:
1255
1355
42.8hp
56.7hp
| Transmissions overview |
| 6-speed gear |
| 9-speed creeper |
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 254mm dry disc
|
| Oil capacity | 18 qts
17.0 L
|

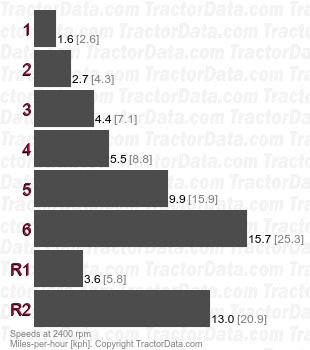

| Speeds |
| With 14.9-28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 9 forward and 3 reverse
|

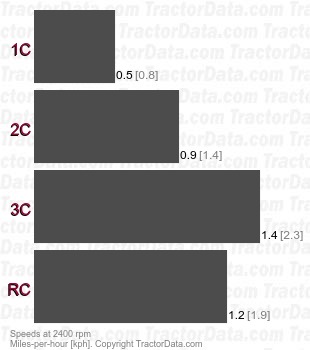

| Speeds |
|
