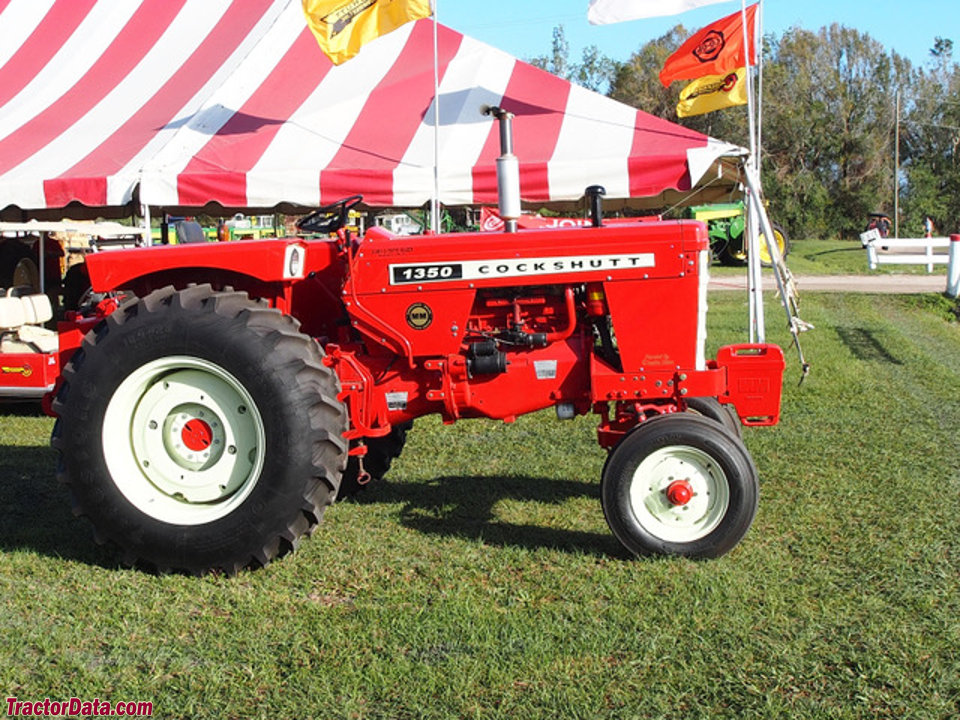

Cockshutt 1350
|
|
| Series: | 1350 | → 1450 |
Note: the Cockshutt model 1350 is the same as the Minneapolis-Moline Jet Star 3 Super. The following data is from the Jet Star 3 Super listing. |
| Production | |
| Manufacturer: | Cockshutt |
| Type: | Row-Crop tractor |
| Factory: | Minneapolis, Minnesota, USA |
| Cockshutt 1350 Power | |
| PTO (claimed): | 44 hp 32.8 kW |
| Cockshutt 1350 Engines | |
| Minneapolis-Moline 3.4L 4-cyl gasoline | |
| Minneapolis-Moline 3.4L 4-cyl diesel | |
| Minneapolis-Moline 3.4L 4-cyl LP gas | |
| Gas Fuel tank: | 14 gal 53.0 L |
| Diesel Fuel tank: | 14 gal 53.0 L |
| LP-gas Fuel tank: | 22 gal 83.3 L |
 Engine details ... | |
| Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| hydrostatic power optional | |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmissions: | 10-speed partial power shift |
| 5-speed gear | |
 Transmission details ... | |
| Photos | |
 | |
 Cockshutt 1350 photos... | |
| Tractor hitch | |
| Rear Type: | II |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| 1000 (1.375) | |
| Engine RPM: | 540@1525 1000@1750 |
| Dimensions & Tires | |
| Wheelbase: | 87.125 inches 221 cm |
| Weight: | 4260 to 4420 pounds |
| Front tire: | 5.50-16 |
| Rear tire: | 12.4-28 |
 Full dimensions and tires ... | |
| 1350 Serial Numbers | |
| Location: | Right side of tractor frame, near brake pedals. |
| 1963: | 28300001 (gas) |
| 1964: | 28301001 (gas) |
| 1965: | 28301985 (gas) |
| 1966: | 28302056 (gas) |
| 1967: | 28302844 (gas) |
| 1968: | 28303566 (gas) |
| 1969: | 28304801 (gas) |
| 1970: | 28305086 (gas) |
| Final: | 28305335 (gas) |
| 1964: | 28400001 (diesel) |
| 1965: | 28400051 (diesel) |
| 1966: | 28400201 (diesel) |
| 1967: | 28400386 (diesel) |
| 1968: | 28400467 (diesel) |
| 1969: | 28400527 (diesel) |
| 1970: | 28400602 (diesel) |
| Final: | 28400711 (diesel) |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Batteries: | 1 (gas/LP) |
| 2 (diesel) | |
| Battery volts: | 12 |
