| | 1993 - 2002 |
| 70 Genesis Series | | Row-Crop tractor |
|
Series map:
8870
8970
210.0hp
240.0hp
| Transmissions overview |
| 16-speed full power shift |
| 32-speed creeper |
| Transmission |
| Type | full power shift
|
| Gears | 16 forward and 8 reverse
|

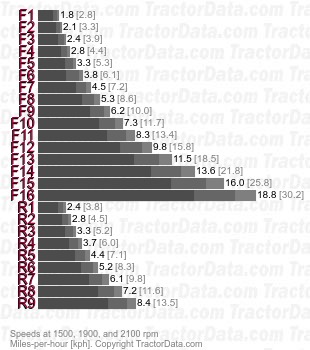

| Speeds |
| With 18.4-42 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 32 forward and 18 reverse
|
| Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range. |
