Ford-New Holland 7610 Transmission


No photo available
1982 - 1992
Utility tractor

Note: the Ford-New Holland model 7610 is the same as the Ford 7610. The following data is from the 7610 listing.
Transmissions overview
8-speed
16-speed partial power shift
16-speed synchromesh partial power shift
Transmission
Transmission:Dual-range
Gears:8 forward and 2 reverse
Clutch:330mm dry disc
Oil capacity:60 qts
56.8 L
Speeds
With 18.4x34 rear tires.

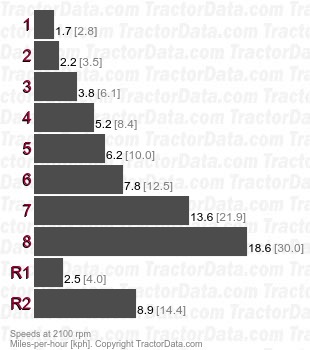

7610 Dual-range  speeds
Transmission
Transmission:Dual Power
Type:partial power shift
Gears:16 forward and 4 reverse
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.
Speeds
With 18.4x34 rear tires.

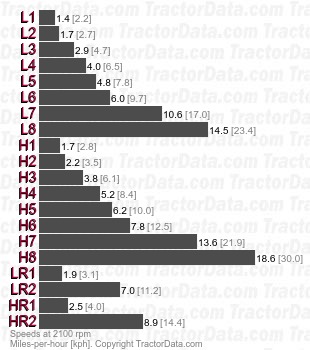

7610 Dual Power partial power shift speeds
Transmission
Transmission:Dual Power
Type:synchromesh partial power shift
Gears:16 forward and 8 reverse
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.
Speeds
With 18.4x34 rear tires.

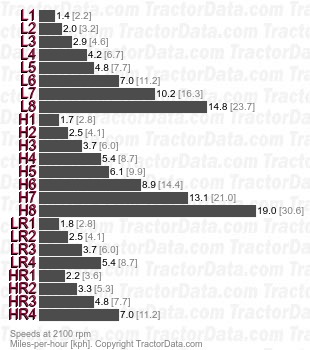

7610 Dual Power synchromesh partial power shift speeds
