| | 1992 - 1996 |
| High-Clearance tractor |
|
Series map:
5530
6530
7530
68.9hp*
77.8hp*
101.1hp*
*Estimated engine power for comparison only.
| Transmissions overview |
| 12-speed partially synchronized |
| 20-speed synchromesh |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|

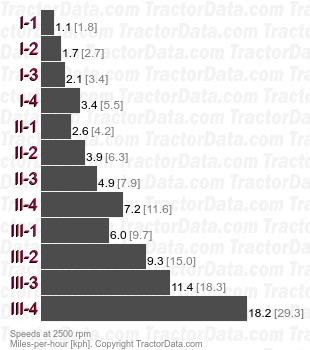

| Four gears in three ranges with mechanical shuttle. |
| Speeds |
| With 13.6x38 rear tires. |
|
| Transmission |
| Type | synchromesh
|
| Gears | 20 forward and 12 reverse
|

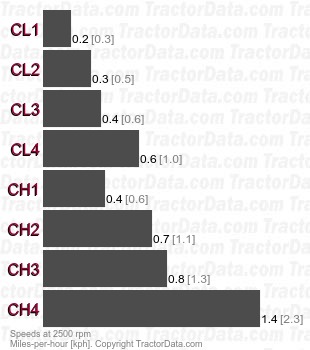

| Optional transmission adds two creeper ranges. |
| Speeds |
| With 13.6x38 rear tires. |
|
