| 1992 - 1996 |
High-Clearance tractor |
|
Series map:
5530
6530
68.9hp*
77.8hp*
*Estimated engine power for comparison only.
Transmissions overview |
12-speed partially synchronized |
20-speed synchromesh |
Transmission |
Type | partially synchronized
|
Gears | 12 forward and reverse
|
Four gears in three ranges with mechanical shuttle. |

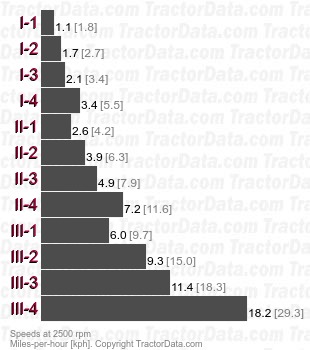

Speeds |
With 13.6x38 rear tires. |
|
Transmission |
Type | synchromesh
|
Gears | 20 forward and 12 reverse
|

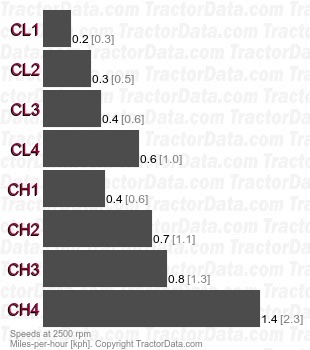

Optional transmission adds two creeper ranges. |
Speeds |
With 13.6x38 rear tires. |
|
