White 4-180 Field Boss

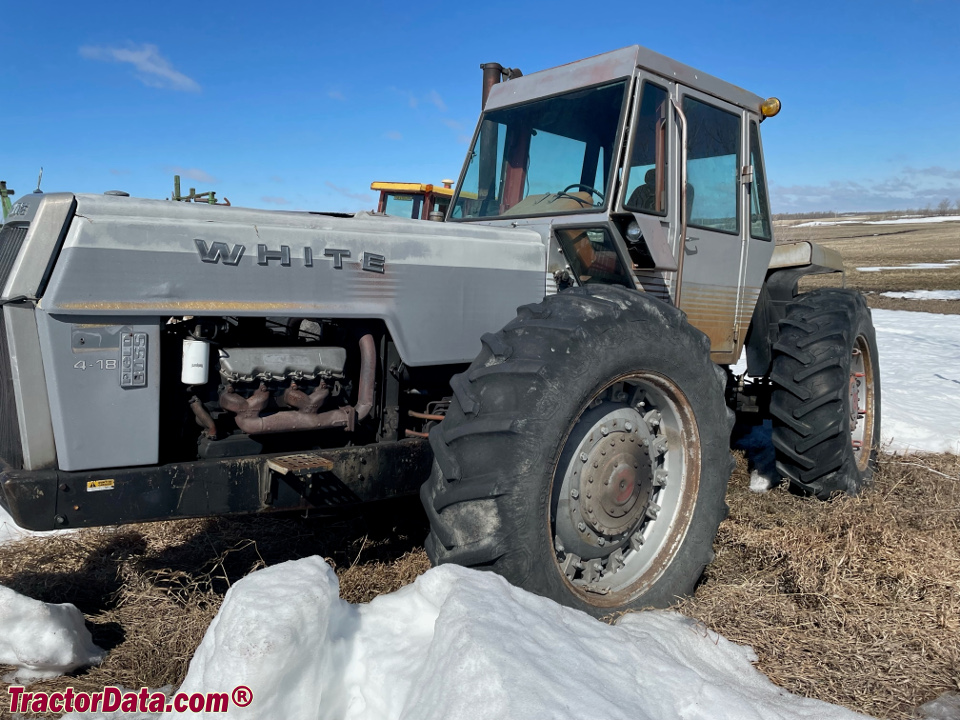

White 4-180 Field Boss tractor photo
1975 - 1978
Four-wheel Drive (4WD) tractor
Series map:
4-180
210.0hp
Production
ManufacturerWhite
Four-wheel Drive (4WD) tractor
Original price was $44,500 in 1978
White 4-180 Engine
Caterpillar 10.4L 8-cyl diesel
Engine details ...
White 4-180 Power
Engine210 hp
156.6 kW
PTO (claimed)180 hp
134.2 kW
Drawbar (tested)150.52 hp
112.2 kW
PTO (tested)181.07 hp
135.0 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Dry disc brakes
Cab standard with heat and air-conditioning
Capacity
Fuel94 gal
355.8 L
Hydraulic system9 gal
34.1 L
Hydraulics
Typeclosed center
Capacity9 gal
34.1 L
Pressure2200 psi
151.7 bar
Valves2
Pump flow20 gpm
75.7 lpm
Tractor hitch
Rear TypeIII
Controlposition control
Rear lift6000 lbs
2721 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Engine RPM1000@2739
Dimensions & Tires
Wheelbase115.6 inches
293 cm
Weight20600 lbs
9344 kg
Front tire18.4-38
Rear tire18.4-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Batteries2
Battery CCA625
Battery volts12
References
4-180 Field Boss references literature
4-180/Field Boss published in 1974, by White
1975 Farm Equipment Line published by White
1976 Farm Equipment Line published by White
1977 Farm Equipment Line published by White
1978 Farm Equipment Line published by White
