White 2-60

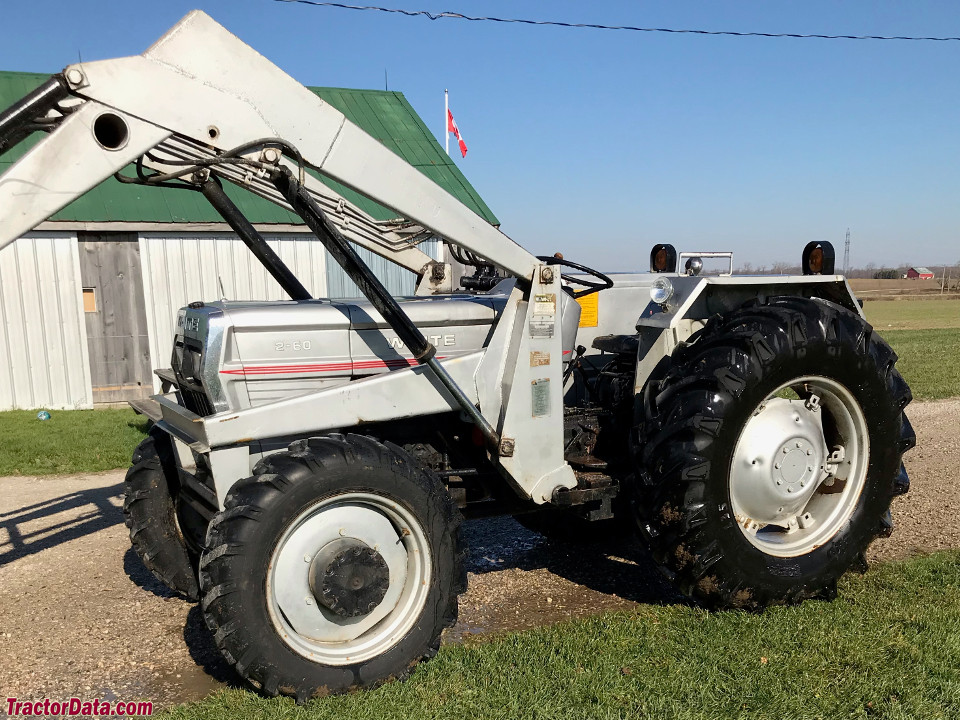

White 2-60 tractor photo
1976 - 1980
Field Boss Series
Utility tractor
Fiat built
Series map:
2-50
2-60
51.1hp*
65.6hp*
*Estimated engine power for comparison only.
Production
DistributorWhite
ManufacturerFiat
Utility tractor
Built in Italy
Original price was $15,100 in 1980
.
Variants
640similar Fiat model
White 2-60 Engine
Fiat 3.5L 4-cyl diesel
Fuel tank14.4 gal
54.5 L
Engine details ...
White 2-60 Power
PTO (claimed)59 hp
44.0 kW
Drawbar (tested)53.16 hp
39.6 kW
PTO (tested)63.22 hp
47.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Steeringpower assist
Independent dry contracting band brakes
Four-post ROPS canopy.
Hydraulics
Typeopen center
Pressure2135 psi
147.2 bar
Pump flow5.8 gpm
22.0 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Rear lift (at 24"/610mm)2400 lbs
1088 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540 (1.375)
Dimensions & Tires
Wheelbase81.5 inches
207 cm
Weight4530 to 5250 pounds
Front tire7.50-16
2WD Rear tire16.9-30
Full dimensions and tires ...
2-60 Serial Numbers
1976780725
1977790273
1978946285
1979959280

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
References
2-60 references literature
New White Tractor Loaders published in 1978
Loaders published in 1979, by White
2-50/2-60 Field Bosses published by White
1976 Farm Equipment Line published by White
1977 Farm Equipment Line published by White
1978 Farm Equipment Line published by White
1979 Farm Equipment Line published by White
