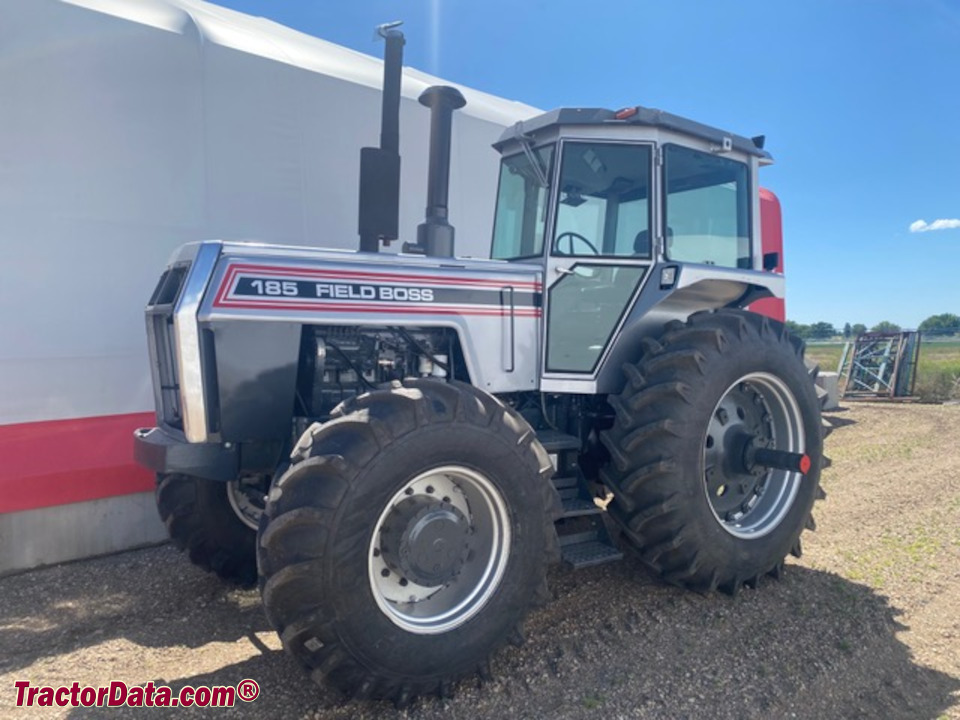

White 185
| | 1986 - 1989 |
| 100 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | White
|
| Type: | Row-Crop tractor
|
| Factory: | Coldwater, Ohio, USA
|
| Original price: | $61,000 (1989 )
|
| White 185 Power |
| PTO (claimed): | 185 hp
138.0 kW
|
| Drawbar (tested): | 163.56 hp
122.0 kW
|
| PTO (tested): | 187.55 hp
139.9 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | hydraulic rear
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. Optional radio, cassette, and 8-track.
|
| Transmission: | 18-speed partial powershift
|
 Transmission details ... |
| Photos |
| No photos of the White 185 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel: | 74 gal
280.1 L
|
| Hydraulic system: | 23 gal
87.1 L
|
| Hydraulics |
| Type: | closed center pressure compensated
|
| Capacity: | 23 gal
87.1 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 2 or 3
|
| Pump flow: | 22 gpm
83.3 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | position and draft control
|
| Rear lift: | 7035 lbs
3191 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 1000
|
| 185 Serial Numbers |
| Location: | Left side of frame, near step
|
| 1986: | 400659 (Field Boss 185)
|
| 1987: | 400887 (Field Boss 185)
|
| 1987: | 400881 (185)
|
| 1988: | 401579 (185)
|
| 1989: | 402761 (185)
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 62
|
| Batteries: | 2
|
| Battery volts: | 12
|
