Tractors > J.I. Case > 2870 Traction King

J.I. Case 2870 Traction King - tests

J.I. Case 2870 Traction King tractor photo
1976 - 1979
Four-wheel Drive (4WD) tractor
Series back:J.I. Case 2670
more J.I. Case 2870 Traction King specifications...






Nebraska Tractor Test 1241:

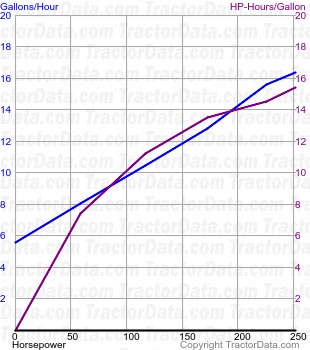

2870 Traction King fuel use from test 1241
Test Date:May 3 - 12, 1977
Type:Diesel 12-speed 4WD
PTO power (rated engine speed):252.10 hp [188.0 kW]
PTO fuel use (engine speed):16.3 gal/hour [61.7 l/hour]
Drawbar power (max):210.64 hp [157.1 kW]
Drawbar fuel use (max):16.2 gal/hour [61.3 l/hour]
Drawbar pull (max):26,386 lbs [11968 kg]
Max pull gear:1I
Test report:PDF file
