J.I. Case 2094 Tests


J.I. Case 2094 tractor photo
1984
94 Series
Row-Crop tractor
Series map:
2094
2294
127.0hp
154.0hp
Nebraska Tractor Test 1525

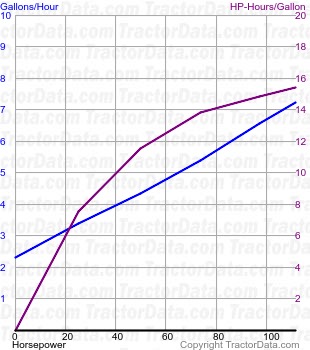

2094 fuel use from test 1525
Nebraska Tractor Test 1525
Diesel 12-speed 2WD
May 30 - June 16, 1984
Link: Nebraska Tractor Test 1525 file
PTO performance
Power at rated engine speed111.50 hp
83.1 kW
Fuel use7.2 gal/hour
27.3 l/hour
Drawbar performance
Max power98.66 hp
73.6 kW
Fuel use7.1 gal/hour
26.9 l/hour
Gear 3-2 used for power test.
Max pull11,910 lbs
5402 kg
Gear 2-1 used for pull test.
