Tractors > J.I. Case > 1690

J.I. Case 1690 - transmission

No photo available
1980 - 1983   90 Series
Utility tractor
Previous model:J.I. Case 1410
Next model:J.I. Case 1594
Series back:J.I. Case 1490
more J.I. Case 1690 specifications...






Transmission:

Type:synchromesh
Gears:12 forward and 4 reverse
Clutch:hydraulic dry disc
Speeds:

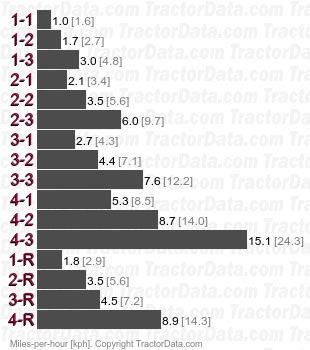

1690  synchromesh speeds


Transmission:

Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:hydraulic dry disc
Three gears, plus reverse, with a four-range power shift.
