Tractors > J.I. Case > 1690

J.I. Case 1690 Tests



J.I. Case 1690 tractor photo
1980 - 1983
90 Series
Utility tractor
Series map:
1490
1690
83.0hp
100.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1383

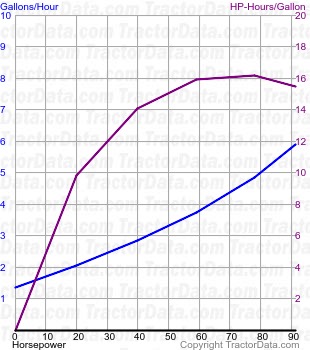

1690 fuel use from test 1383
Nebraska Tractor Test 1383
Diesel 12-speed synchro 4WD
March 27 - April 21, 1981
Link: Nebraska Tractor Test 1383 file
PTO performance
Power at rated engine speed90.39 hp
67.4 kW
Fuel use5.8 gal/hour
22.0 l/hour
Power at rated PTO speed87.76 hp
65.4 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power72.55 hp
54.1 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 3-2 used for power test.
Max pull10536 lbs
4779 kg
Gear 3-1 used for pull test.
