Tractors > J.I. Case > 1570

J.I. Case 1570 Tests



J.I. Case 1570 tractor photo
1976 - 1978
Row-Crop tractor
Series map:
1570
200.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1218

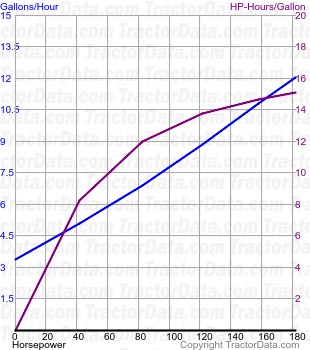

1570 fuel use from test 1218
Nebraska Tractor Test 1218
Diesel 12-speed 2WD
August 27 - September 3, 1976
Link: Nebraska Tractor Test 1218 file
PTO performance
Power at rated engine speed180.41 hp
134.5 kW
Fuel use12.0 gal/hour
45.4 l/hour
Drawbar performance
Max power147.89 hp
110.3 kW
Fuel use11.6 gal/hour
43.9 l/hour
Gear 3L used for power test.
Max pull17115 lbs
7763 kg
Gear 2L used for pull test.
