Tractors > J.I. Case > 1031

J.I. Case 1031 - tests

J.I. Case 1031 tractor photo
1966 - 1969   1030 Series
Row-Crop tractor
more J.I. Case 1031 specifications...






Nebraska Tractor Test 952:

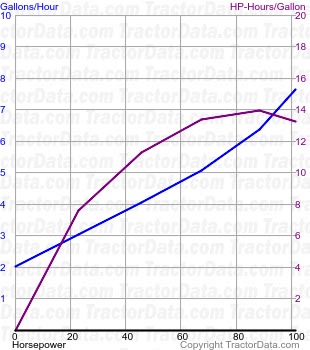

1031 fuel use from test 952
Test Date:November 2 - 5, 1966
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):101.79 hp [75.9 kW]
PTO fuel use (engine speed):7.7 gal/hour [29.1 l/hour]
PTO power (rated PTO speed):93.15 hp [69.5 kW]
PTO fuel use (PTO speed):6.8 gal/hour [25.7 l/hour]
Drawbar power (max):88.34 hp [65.9 kW]
Drawbar fuel use (max):7.6 gal/hour [28.8 l/hour]
Drawbar pull (max):12,056 lbs [5468 kg]
Max pull gear:2
Test report:PDF file
