Tractors > J.I. Case > 941 GP

J.I. Case 941 GP - tests

J.I. Case 941 GP tractor photo
1964 - 1969   30 Series
Row-Crop tractor
more J.I. Case 941 GP specifications...






Nebraska Tractor Test 920:

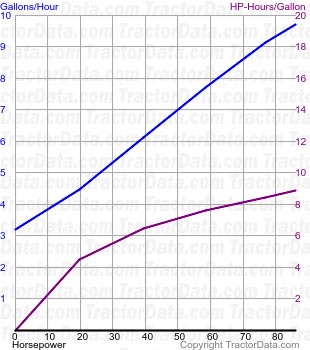

941 GP fuel use from test 920
Test Date:October 8 - 27, 1965
Type:Gasoline 8-speed 2WD
PTO power (rated engine speed):86.21 hp [64.3 kW]
PTO fuel use (engine speed):7.6 gal/hour [28.8 l/hour]
PTO power (rated PTO speed):83.85 hp [62.5 kW]
PTO fuel use (PTO speed):7.2 gal/hour [27.3 l/hour]
Drawbar power (max):69.77 hp [52.0 kW]
Drawbar fuel use (max):7.4 gal/hour [28.0 l/hour]
Drawbar pull (max):10122 lbs [4591 kg]
Max pull gear:2
Test report:PDF file


Nebraska Tractor Test 922:

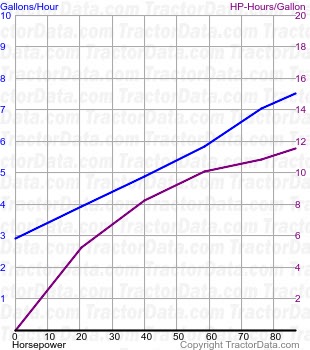

941 GP fuel use from test 922
Test Date:October 9 - 25, 1965
Type:LP gas 8-speed 2WD
PTO power (rated engine speed):85.86 hp [64.0 kW]
PTO fuel use (engine speed):9.7 gal/hour [36.7 l/hour]
PTO power (rated PTO speed):82.98 hp [61.9 kW]
PTO fuel use (PTO speed):9.1 gal/hour [34.4 l/hour]
Drawbar power (max):72.63 hp [54.2 kW]
Drawbar fuel use (max):9.6 gal/hour [36.3 l/hour]
Drawbar pull (max):10292 lbs [4668 kg]
Max pull gear:2
Test report:PDF file
