Tractors > J.I. Case > 930

J.I. Case 930 - tests

J.I. Case 930 tractor photo
1960 - 1969   30 Series
Standard-tread tractor
more J.I. Case 930 specifications...






Nebraska Tractor Test 741:

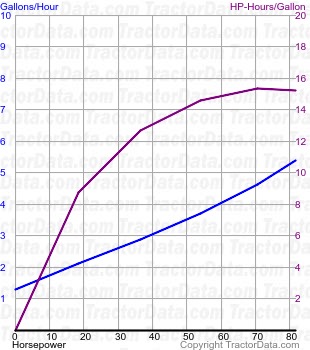

930 fuel use from test 741
Test Date:April 14 - May 5, 1960
Type:Diesel 6-speed 2WD
PTO power (rated engine speed):80.65 hp [60.1 kW]
PTO fuel use (engine speed):5.3 gal/hour [20.1 l/hour]
PTO power (rated PTO speed):79.10 hp [59.0 kW]
PTO fuel use (PTO speed):5.2 gal/hour [19.7 l/hour]
Drawbar power (max):70.93 hp [52.9 kW]
Drawbar fuel use (max):5.4 gal/hour [20.4 l/hour]
Drawbar pull (max):10964 lbs [4973 kg]
Max pull gear:1
Test report:PDF file
