J.I. Case 870 Tests


J.I. Case 870 tractor photo
1970 - 1975
70 Series
Series map:
770
870
970
62.2hp*
78.9hp*
95.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1030: diesel 12-speed 2WD
NTTL 1031: diesel 8-speed 2WD
NTTL 1059: gasoline 12-speed 2WD
NTTL 1060: gasoline 8-speed 2WD
NTTL 1076: diesel (2000 rpm) 12-speed 2WD
NTTL 1077: diesel (2000 rpm) 8-speed 2WD
NTTL 1149: diesel (2100 rpm) 8-speed 2WD
NTTL 1150: diesel 12-speed 2WD
Nebraska Tractor Test 1030

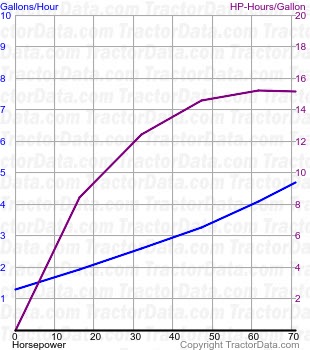

870 fuel use from test 1030
Nebraska Tractor Test 1030
Diesel 12-speed 2WD
November 10 - 19, 1969
Link: Nebraska Tractor Test 1030 file
PTO performance
Power at rated engine speed70.53 hp
52.6 kW
Fuel use4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power61.38 hp
45.8 kW
Fuel use4.7 gal/hour
17.8 l/hour
Gear 2-High used for power test.
Max pull8876 lbs
4026 kg
Gear 1-High used for pull test.
Nebraska Tractor Test 1031

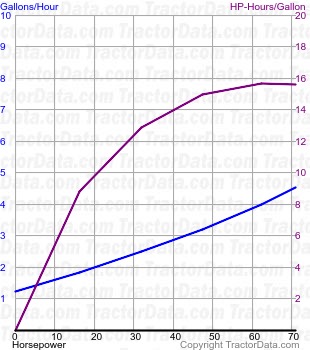

870 fuel use from test 1031
Nebraska Tractor Test 1031
Diesel 8-speed 2WD
November 10 - 20, 1969
Link: Nebraska Tractor Test 1031 file
PTO performance
Power at rated engine speed70.67 hp
52.7 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power61.77 hp
46.1 kW
Fuel use4.3 gal/hour
16.3 l/hour
Gear 4-Low used for power test.
Max pull8934 lbs
4052 kg
Gear 2-Low used for pull test.
Nebraska Tractor Test 1059

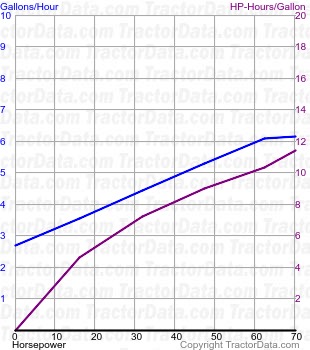

870 fuel use from test 1059
Nebraska Tractor Test 1059
Gasoline 12-speed 2WD
October 28 - November 17, 1970
Link: Nebraska Tractor Test 1059 file
PTO performance
Power at rated engine speed70.67 hp
52.7 kW
Fuel use6.3 gal/hour
23.8 l/hour
Drawbar performance
Max power58.03 hp
43.3 kW
Fuel use6.1 gal/hour
23.1 l/hour
Gear 2-High used for power test.
Max pull8793 lbs
3988 kg
Gear 1-Med used for pull test.
Nebraska Tractor Test 1060

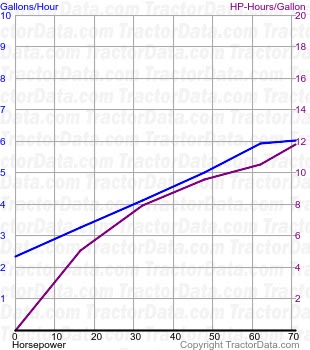

870 fuel use from test 1060
Nebraska Tractor Test 1060
Gasoline 8-speed 2WD
October 28 - November 7, 1970
Link: Nebraska Tractor Test 1060 file
PTO performance
Power at rated engine speed71.06 hp
53.0 kW
Fuel use6.0 gal/hour
22.7 l/hour
Drawbar performance
Max power62.52 hp
46.6 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 4-Low used for power test.
Max pull9105 lbs
4130 kg
Gear 2-Low used for pull test.
Nebraska Tractor Test 1076

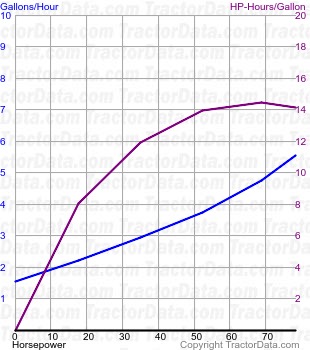

870 fuel use from test 1076
Nebraska Tractor Test 1076
Diesel (2000 rpm) 12-speed 2WD

Link: Nebraska Tractor Test 1076 file
PTO performance
Power at rated engine speed77.92 hp
58.1 kW
Fuel use5.5 gal/hour
20.8 l/hour
Power at rated PTO speed77.11 hp
57.5 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power66.89 hp
49.9 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 3-Low used for power test.
Max pull10075 lbs
4570 kg
Gear 1-Med used for pull test.
Nebraska Tractor Test 1077

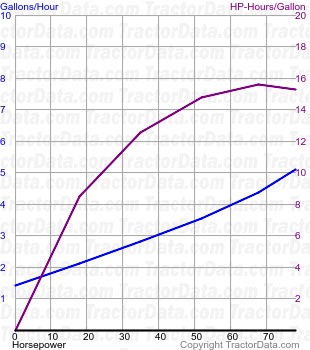

870 fuel use from test 1077
Nebraska Tractor Test 1077
Diesel (2000 rpm) 8-speed 2WD
September 12 - 24, 1971
Link: Nebraska Tractor Test 1077 file
PTO performance
Power at rated engine speed77.45 hp
57.8 kW
Fuel use5.0 gal/hour
18.9 l/hour
Power at rated PTO speed76.63 hp
57.1 kW
Fuel use5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power69.04 hp
51.5 kW
Fuel use5.2 gal/hour
19.7 l/hour
Gear 4-Low used for power test.
Max pull9733 lbs
4414 kg
Gear 1-Low used for pull test.
Nebraska Tractor Test 1149

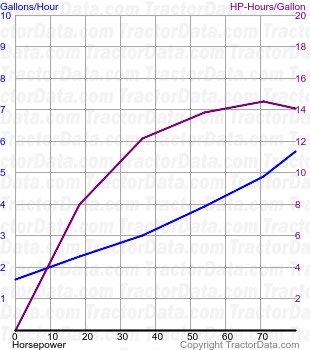

870 fuel use from test 1149
Nebraska Tractor Test 1149
Diesel (2100 rpm) 8-speed 2WD
October 22 - 31, 1973
Link: Nebraska Tractor Test 1149 file
PTO performance
Power at rated engine speed80.20 hp
59.8 kW
Fuel use5.7 gal/hour
21.6 l/hour
Power at rated PTO speed77.93 hp
58.1 kW
Fuel use5.4 gal/hour
20.4 l/hour
Drawbar performance
Max power69.53 hp
51.8 kW
Fuel use5.6 gal/hour
21.2 l/hour
Gear 4-Low used for power test.
Max pull10047 lbs
4557 kg
Gear 1-Low used for pull test.
Nebraska Tractor Test 1150

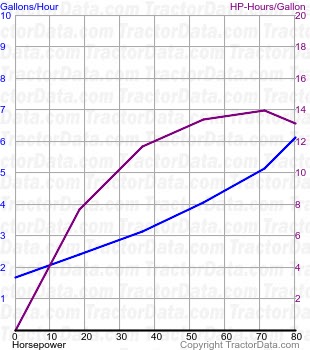

870 fuel use from test 1150
Nebraska Tractor Test 1150
Diesel 12-speed 2WD
October 26 - November 6, 1973
Link: Nebraska Tractor Test 1150 file
PTO performance
Power at rated engine speed80.49 hp
60.0 kW
Fuel use6.0 gal/hour
22.7 l/hour
Power at rated PTO speed76.52 hp
57.1 kW
Fuel use5.6 gal/hour
21.2 l/hour
Drawbar performance
Max power68.90 hp
51.4 kW
Fuel use6.0 gal/hour
22.7 l/hour
Gear 3-Low used for power test.
Max pull10030 lbs
4549 kg
Gear 1-Med used for pull test.
