Tractors > J.I. Case > 831

J.I. Case 831 Tests



J.I. Case 831 tractor photo
1960 - 1969
830 Series
Row-Crop tractor
Series map:
831
70.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 736: diesel Case-O-Matic 2WD
NTTL 737: diesel Dual-Range 2WD
NTTL 917: diesel Dual-Range 2WD CK
Nebraska Tractor Test 736

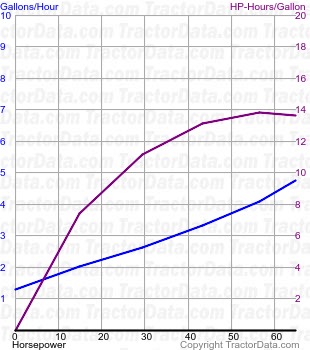

831 fuel use from test 736
Nebraska Tractor Test 736
Diesel Case-O-Matic 2WD
April 5 - 19, 1960
Link: Nebraska Tractor Test 736 file
PTO performance
Power at rated engine speed63.74 hp
47.5 kW
Fuel use4.6 gal/hour
17.4 l/hour
Power at rated PTO speed61.08 hp
45.5 kW
Fuel use4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power58.3 hp
43.5 kW
Fuel use4.6 gal/hour
17.4 l/hour
Gear 4 used for power test.
Max pull7951 lbs
3606 kg
Gear 2 used for pull test.
Nebraska Tractor Test 737

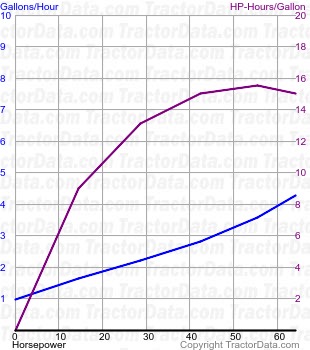

831 fuel use from test 737
Nebraska Tractor Test 737
Diesel Dual-Range 2WD
April 5 - 23, 1960
Link: Nebraska Tractor Test 737 file
PTO performance
Power at rated engine speed63.76 hp
47.5 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power54.27 hp
40.5 kW
Gear 4 used for power test.
Max pull7861 lbs
3565 kg
Gear 2 used for pull test.
Nebraska Tractor Test 917
831 fuel use from test 917
Nebraska Tractor Test 917
Diesel Dual-Range 2WD CK
October 7 - 16, 1965
Link: Nebraska Tractor Test 917 file
PTO performance
Power at rated engine speed64.26 hp
47.9 kW
Fuel use4.8 gal/hour
18.2 l/hour
Power at rated PTO speed60.05 hp
44.8 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power57.69 hp
43.0 kW
Fuel use4.8 gal/hour
18.2 l/hour
Gear 4 used for power test.
Max pull8271 lbs
3751 kg
Gear 2 used for pull test.
