Tractors > J.I. Case > 811-B

J.I. Case 811-B - tests

J.I. Case 811-B tractor photo
1958 - 1960   800 B Series
Row-Crop tractor
Next model:J.I. Case 841
more J.I. Case 811-B specifications...






Nebraska Tractor Test 679:

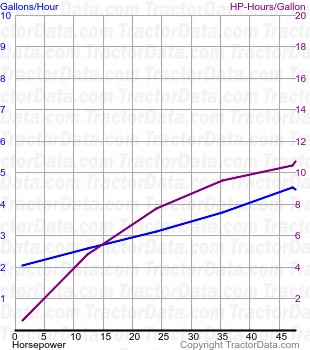

811-B fuel use from test 679
Test Date:October 27 - November 17, 1958
Type:Gasoline 8-speed 2WD
Belt power (max):53.90 hp [40.2 kW]
Belt fuel use (max):5.2 gal/hour [19.7 l/hour]
Drawbar power (max):43.83 hp [32.7 kW]
Drawbar fuel use (max):4.5 gal/hour [17.0 l/hour]
Drawbar pull (max):7,207 lbs [3269 kg]
Max pull gear:2
Test report:PDF file


Nebraska Tractor Test 695:

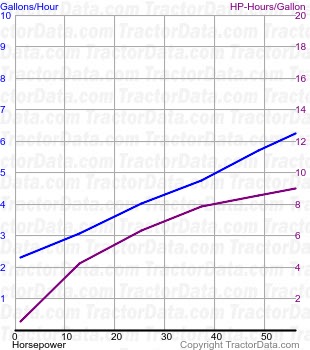

811-B fuel use from test 695
Test Date:April 27 - May 16, 1959
Type:LP gas 8-speed 2WD
PTO power (rated engine speed):55.58 hp [41.4 kW]
PTO fuel use (engine speed):6.2 gal/hour [23.5 l/hour]
PTO power (rated PTO speed):48.88 hp [36.4 kW]
PTO fuel use (PTO speed):5.2 gal/hour [19.7 l/hour]
Drawbar power (max):50.62 hp [37.7 kW]
Drawbar fuel use (max):6.2 gal/hour [23.5 l/hour]
Drawbar pull (max):7,159 lbs [3247 kg]
Max pull gear:2
Test report:PDF file
