J.I. Case 731 Transmission


J.I. Case 731 tractor photo
1960 - 1969
730 Series
Row-Crop tractor
Transmissions overview
8-speed torque converter
8-speed unsynchronized
Transmission
TransmissionCase-o-matic
Typetorque converter
Gears8 forward and 2 reverse
Speeds

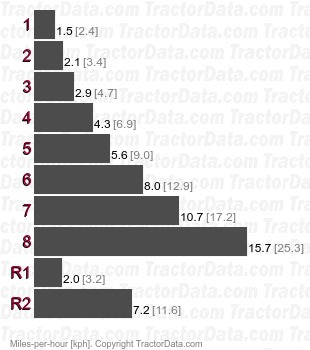

731 Case-o-matic torque converter speeds
Transmission
TransmissionDual-Range
Typeunsynchronized
Gears8 forward and 2 reverse
Clutchmechanical dry disc
Speeds

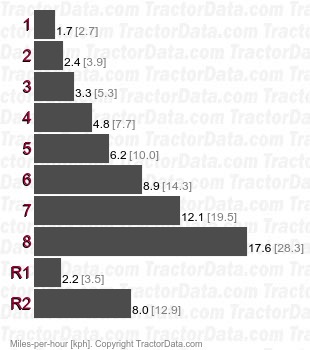

731 Dual-Range unsynchronized speeds
