J.I. Case 531 Transmission


J.I. Case 531 tractor photo
1960 - 1969
530 Series
Row-Crop tractor
Transmission options
12-speed
8-speed torque converter
4-speed gear
8-speed mechanical shuttle
Transmission
TransmissionTripl-Range
Gears12 forward and 3 reverse
Clutchdry disc
Speeds

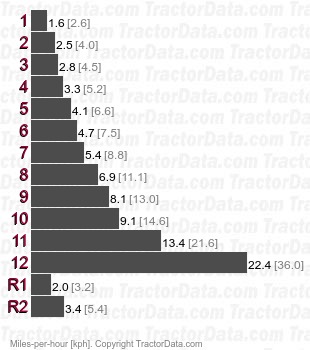

531 Tripl-Range  speeds
Transmission
TransmissionCase-O-Matic
Typetorque converter
Gears8 forward and 2 reverse
Clutchhydraulic disc
Speeds

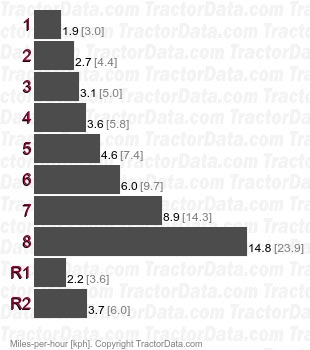

531 Case-O-Matic torque converter speeds
Transmission
Typegear
Gears4 forward and 1 reverse
Clutchdry disc
Speeds

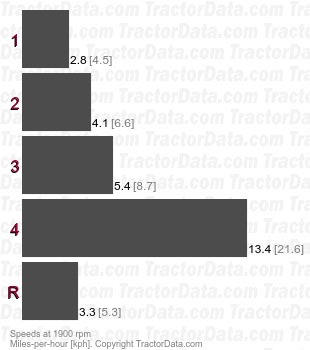

531  gear speeds
Transmission
TransmissionDual-Range Shuttle
Typemechanical shuttle
Gears8 forward and reverse
Clutchdry dsic
Four gears (1-4) in two ranges (low/high) with mechanical shuttle.
