J.I. Case 530 Transmission
|
|
| Transmissions overview | |
| 12-speed | |
| 8-speed torque converter | |
| 4-speed gear | |
| 8-speed mechanical shuttle |
| Transmission | |

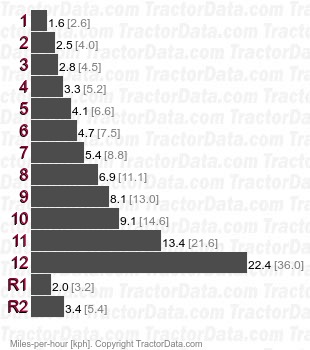

| Transmission | Tripl-Range |
| Gears | 12 forward and 3 reverse |
| Clutch | dry disc |
| Speeds | |
|
| Transmission | |

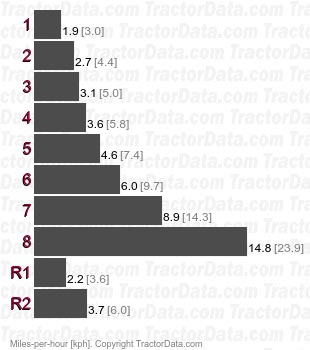

| Transmission | Case-O-Matic |
| Type | torque converter |
| Gears | 8 forward and 2 reverse |
| Clutch | hydraulic disc |
| Speeds | |
|

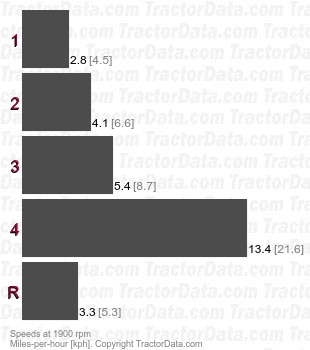

| Transmission | |
| Type | gear |
| Gears | 4 forward and 1 reverse |
| Clutch | dry disc |
| Speeds | |
|
| Transmission | |
| Transmission | Dual-Range Shuttle |
| Type | mechanical shuttle |
| Gears | 8 forward and reverse |
| Clutch | dry dsic |
| Four gears (1-4) in two ranges (low/high) with mechanical shuttle. | |
