J.I. Case 440 Transmission


J.I. Case 440 tractor photo
1960 - 1969
430 Series
Utility tractor
Transmission options
4-speed unsynchronized gear
12-speed unsynchronized gear
8-speed mechanical shuttle
Transmission
Typeunsynchronized gear
Gears4 forward and 1 reverse
Clutch234mm dry disc
Speeds
With 10-28 rear tires.
440  unsynchronized gear speeds
Transmission
TransmissionTripl-Range
Typeunsynchronized gear
Gears12 forward and 3 reverse
Clutch234mm dry disc
Tripl-Range adds three ranges (low, direct, and high) to the basic four-speed transmission.
Speeds

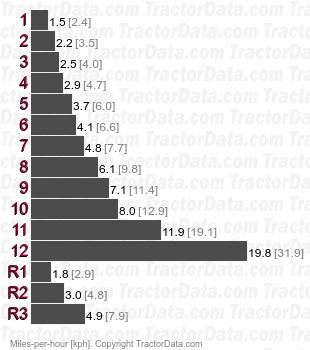

440 Tripl-Range unsynchronized gear speeds
Transmission
TransmissionDual-Range Shuttle
Typemechanical shuttle
Gears8 forward and reverse
Clutch279.4mm dry disc
Four gears in two ranges with mechanical shuttle.
