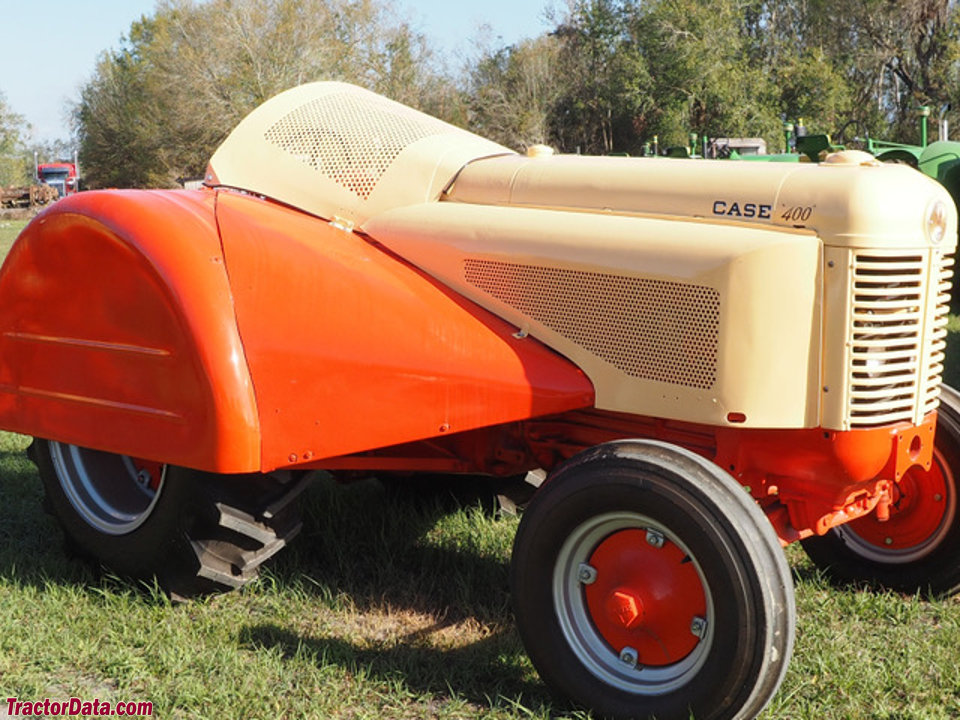

    J.I. Case 405

    J.I. Case 405 tractor photo  I&T Manual: Case C, D, L, R, S, V, 200, 300, 450, 400, 500, 600, 700, 800
    I&T Shop Manual
    1955 - 1957   400 Series
    Orchard/Vineyard tractor






    Production:

    Manufacturer:J.I. Case
    Total built:50
    Original price (USD):$4,800 (1958)


    Variants:

    400:diesel standard
    401:diesel row-crop
    402:diesel vineyard
    403:diesel high-crop
    405:diesel orchard
    405:gasoline orchard
    420:diesel industrial


    J.I. Case 405 Engine:

       J.I. Case 4.1L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:21 gal [79.5 L]
    Hydraulic system:2.25 gal [8.5 L]
     2.6 gal [9.8 L] (with Eagle Hitch)


    Rear Hitch:

    Type:Case Eagle Hitch


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    Dimensions & Tires:

    full dimensions and tires ...


    405 Serial Numbers:


    - Serial numbers unknown -



    J.I. Case 405 Power:

    Belt (claimed):50 hp [37.3 kW]
    Plows:4 (14-inch)


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
     power optional
    Brakes:mechanical dry discs
    Cab:Open opertator station.


    Hydraulics:

    Capacity:2.25 gal [8.5 L]
     2.6 gal [9.8 L] (with Eagle Hitch)
    Pressure:600 psi [41.4 bar]
    Valves:2 (optional)
    Total flow:12 gpm [45.4 lpm]


    Belt Pulley:

    Diameter:10.5 inches [26 cm]
    Width:7.25 inches [18 cm]
    RPMs:1128
    Speed:3,101 ft/min [945.18 meters/min]


    Electrical:

    Ground:negative
    Charging system:generator
    Charging volts:12


    Battery:

    Number:2
    Volts:6
    Amp-hours:150
