Tractors > J.I. Case > 301

J.I. Case 301 - transmission

J.I. Case 301 tractor photo
1956 - 1958   300 Series
Row-Crop tractor
Next model:J.I. Case 301-B
more J.I. Case 301 specifications...






Transmission:

Type:sliding gear
Gears:4 forward and 1 reverse
Clutch:234.9mm dry disc
Speeds:
301  sliding gear speeds


Transmission:

Transmission:Tripl-Range
Gears:12 forward and 3 reverse
Clutch:234.9mm dry disc (master foot clutch)
 wet discs (traction hand clutch)
Four gears (1-4) plus reverse (R) in three ranges (low, direct, high).
Speeds:

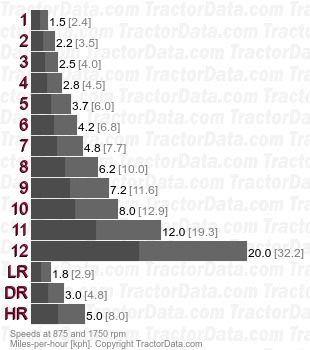

301 Tripl-Range  speeds

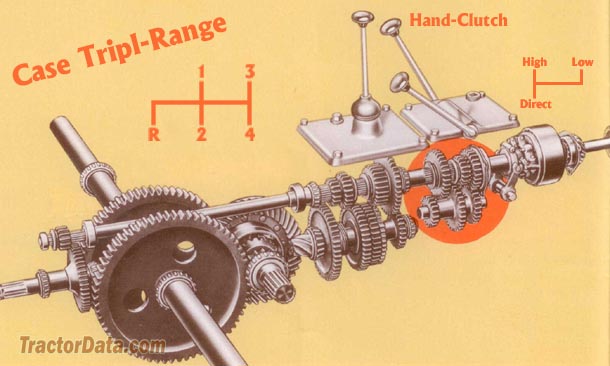

J.I. Case 301 Tripl-Range transmission photo
