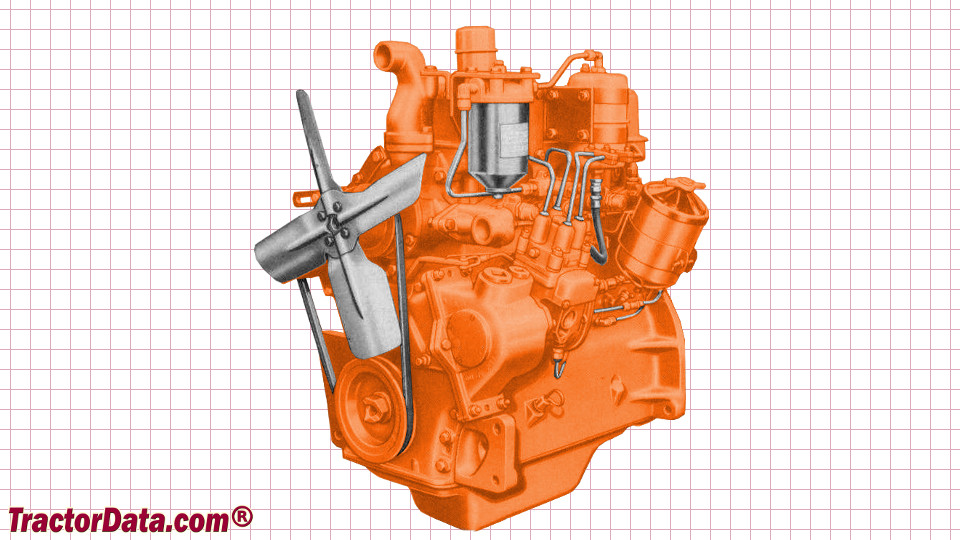

    J.I. Case 301 - engine




    No photo available
    I&T Manual: Case C, D, L, R, S, V, 200, 300, 450, 400, 500, 600, 700, 800
    I&T Shop Manual for the
    J.I. Case 301
    Model:301
    Years:1956 - 1958
    Tractor type:Farm/Agricultural tractor
    Original price:$3,600 (1958)
    more J.I. Case 301 specifications...


    Engine:

    Manufacturer:Continental
    Model:GD157
    Fuel:diesel
    Type:vertical I-head
    Cylinders:4
    Valves:-unknown-
    Bore/Stroke:3.375x4.375 inches [86 x 111 mm]
    Displacement:157 ci [2.6 L]
    Cooling:liquid
    Coolant:12 qts [11.4 L]
    Compression:15.5:1
    Rated RPMs:1750
    Starter volts:12
